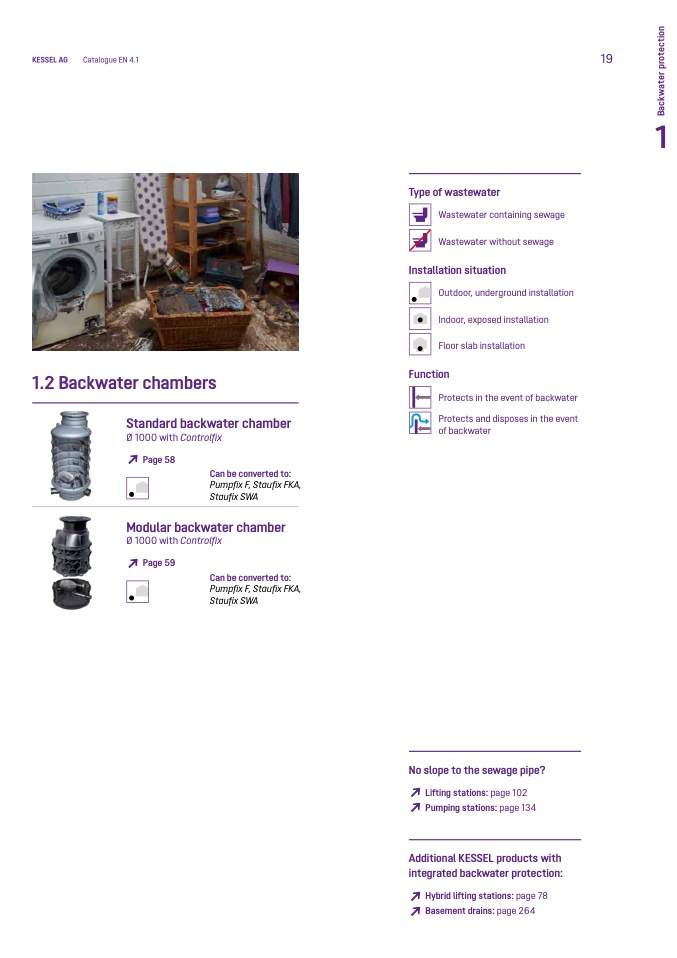

KESSEL AG

Catalogue EN 4.1

19

1.2 Backwater chambers

Standard backwater chamber

Ø 1000 with Controlfix

↗

Page 58

Modular backwater chamber

Ø 1000 with Controlfix

↗

Page 59

Type of wastewater

Wastewater containing sewage

Wastewater without sewage

Installation situation

Outdoor, underground installation

Indoor, exposed installation

Floor slab installation

Function

Protects in the event of backwater

Protects and disposes in the event

of backwater

Can be converted to:

Pumpfix F, Staufix FKA,

Staufix SWA

Can be converted to:

Pumpfix F, Staufix FKA,

Staufix SWA

No slope to the sewage pipe?

↗

Lifting stations: page 102

↗

Pumping stations: page 134

Additional KESSEL products with

integrated backwater protection:

↗

Hybrid lifting stations: page 78

↗

Basement drains: page 264

1

B

a

c

k

w

a

t

e

r

p

r

o

t

e

c

t

i

o

n
