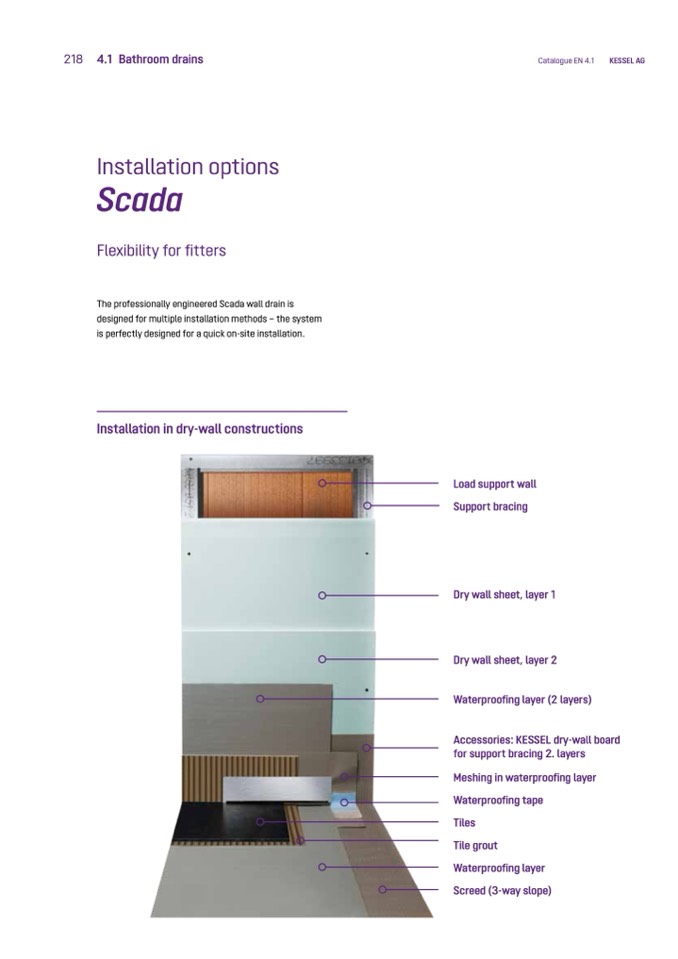

Installation options

Scada

Flexibility for fitters

The professionally engineered Scada wall drain is

designed for multiple installation methods – the system

is perfectly designed for a quick on-site installation.

Installation in dry-wall constructions

Load support wall

Support bracing

Dry wall sheet, layer 1

Dry wall sheet, layer 2

Waterproofing layer (2 layers)

Accessories: KESSEL dry-wall board

for support bracing 2. layers

Meshing in waterproofing layer

Waterproofing tape

Tiles

Tile grout

Waterproofing layer

Screed (3-way slope)
