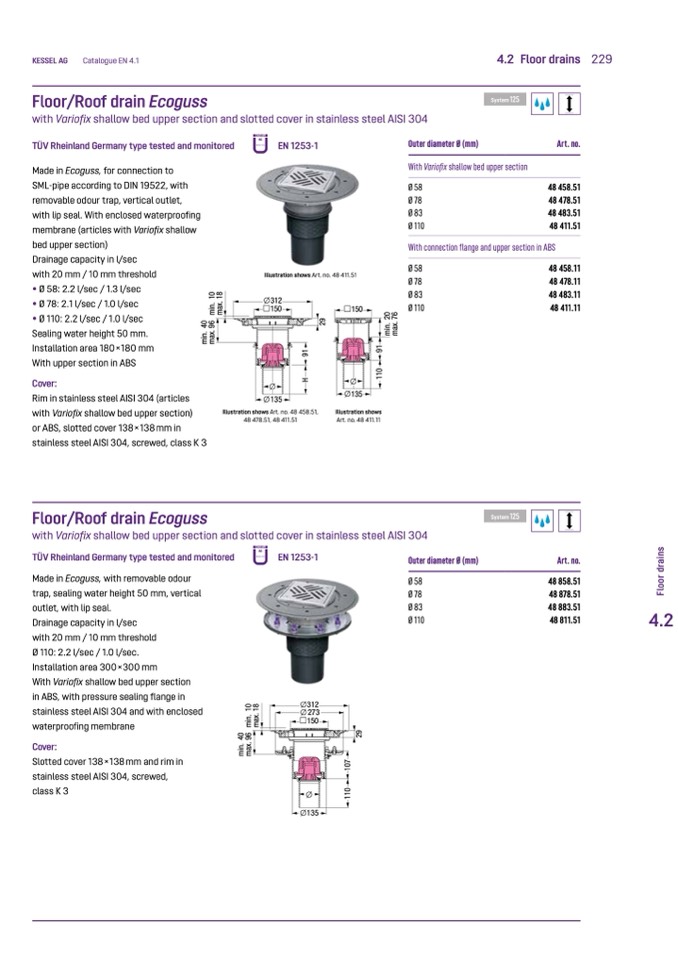

4.2 Floor drains
Floor/Roof drain Ecoguss
229
with Variofix shallow bed upper section and slotted cover in stainless steel AISI 304
TÜV Rheinland Germany type tested and monitored
Made in Ecoguss, for connection to
SML-pipe according to DIN 19522, with
removable odour trap, vertical outlet,
with lip seal. With enclosed waterproofing
membrane (articles with Variofix shallow
bed upper section)
Drainage capacity in l/sec
with 20 mm / 10 mm threshold
• Ø 58: 2.2 l/sec / 1.3 l/sec
• Ø 78: 2.1 l/sec / 1.0 l/sec
• Ø 110: 2.2 l/sec / 1.0 l/sec
Sealing water height 50 mm.
Installation area 180×180 mm
With upper section in ABS
Cover:
Rim in stainless steel AISI 304 (articles
with Variofix shallow bed upper section)
or ABS, slotted cover 138×138 mm in
stainless steel AISI 304, screwed, class K 3
EN 1253-1
Illustration shows Art. no. 48 411.51
312
Ø 83
TÜV Rheinland Germany type tested and monitored
Made in Ecoguss, with removable odour
trap, sealing water height 50 mm, vertical
outlet, with lip seal.
Drainage capacity in l/sec
with 20 mm / 10 mm threshold
Ø 110: 2.2 l/sec / 1.0 l/sec.
Installation area 300×300 mm
With Variofix shallow bed upper section
in ABS, with pressure sealing flange in
stainless steel AISI 304 and with enclosed
waterproofing membrane
Cover:
Slotted cover 138×138 mm and rim in
stainless steel AISI 304, screwed,
class K 3
EN 1253-1
312
273
150
Outer diameter Ø (mm)
Ø 58
Ø 78
Ø 83
Ø 110
Art. no.
48 858.51
48 878.51
48 883.51
48 811.51
4.2
150
150
Ø 110
135
135
Illustration shows Art. no. 48 458.51,
Illustration shows
48 478.51, 48 411.51
Art. no. 48 411.11
Floor/Roof drain Ecoguss
with Variofix shallow bed upper section and slotted cover in stainless steel AISI 304
DN
• •
DN
135
Outer diameter Ø (mm)
With Variofix shallow bed upper section
Ø 58
Ø 78
Ø 83
Ø 110
Art. no.
48 458.51
48 478.51
48 483.51
48 411.51
With connection flange and upper section in ABS
48 458.11
48 478.11
48 483.11
48 411.11
Ø 58
Ø 78
