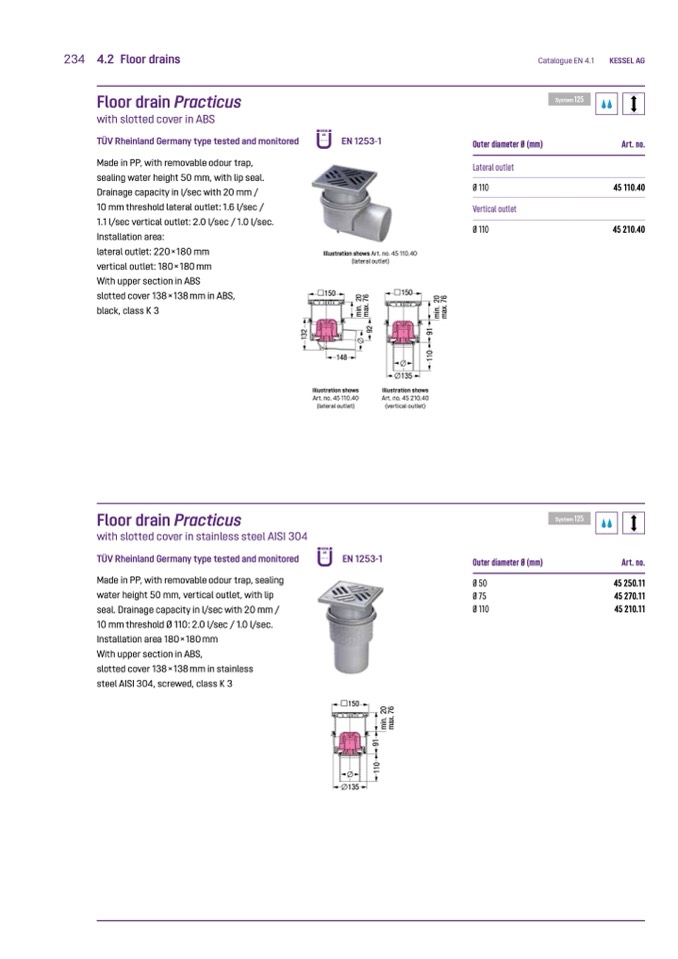

234 4.2 Floor drains

Floor drain Practicus

with slotted cover in ABS

TÜV Rheinland Germany type tested and monitored

Made in PP, with removable odour trap,

sealing water height 50 mm, with lip seal.

Drainage capacity in l/sec with 20 mm /

10 mm threshold lateral outlet: 1.6 l/sec /

1.1 l/sec vertical outlet: 2.0 l/sec / 1.0 l/sec.

Installation area:

lateral outlet: 220×180 mm

vertical outlet: 180×180 mm

With upper section in ABS

slotted cover 138×138 mm in ABS,

black, class K 3

EN 1253-1

Illustration shows Art. no. 45 110.40

(lateral outlet)

Catalogue EN 4.1

Outer diameter Ø (mm)

Lateral outlet

Ø 110

Vertical outlet

Ø 110

KESSEL AG

Art. no.

45 110.40

45 210.40

Floor drain Practicus

with slotted cover in stainless steel AISI 304

TÜV Rheinland Germany type tested and monitored

Made in PP, with removable odour trap, sealing

water height 50 mm, vertical outlet, with lip

seal. Drainage capacity in l/sec with 20 mm /

10 mm threshold Ø 110: 2.0 l/sec / 1.0 l/sec.

Installation area 180×180 mm

With upper section in ABS,

slotted cover 138×138 mm in stainless

steel AISI 304, screwed, class K 3

A

A

EN 1253-1

150

135

Outer diameter Ø (mm)

Ø 50

Ø 75

Ø 110

Art. no.

45 250.11

45 270.11

45 210.11

150

Illustration shows

Art. no. 45 110.40

(lateral outlet)

150

135

Illustration shows

Art. no. 45 210.40

(vertical outlet)

148

151

1

1

0

9

1

m

i

n

.

2

0

m

a

x

.

7

6

1

3

2

9

2

1

1

0

9

1

m

i

n

.

2

0

m

a

x

.

7

6

9

2

m

i

n

.

2

0

m

a

x

.

7

6

1

3

2
