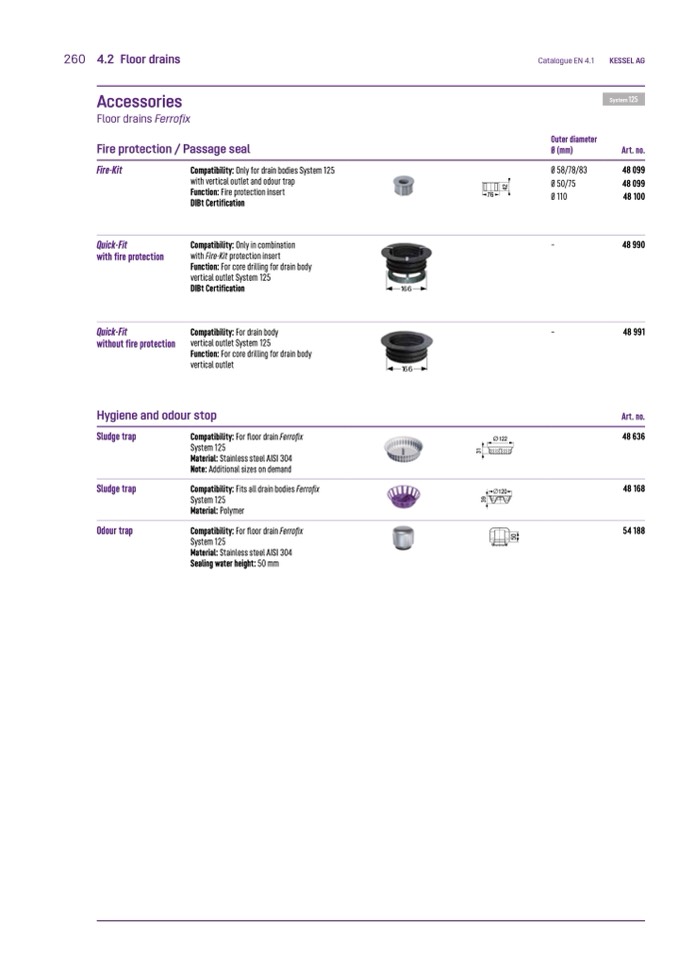

260 4.2 Floor drains

Accessories

Floor drains Ferrofix

Fire protection / Passage seal

Catalogue EN 4.1

Outer diameter

Ø (mm)

KESSEL AG

Art. no.

48 099

48 099

48 100

48 990

48 991

Art. no.

48 636

48 168

54 188

Fire-Kit

Quick-Fit

with fire protection

Quick-Fit

without fire protection

Compatibility: Only for drain bodies System 125

with vertical outlet and odour trap

Function: Fire protection insert

DIBt Certification

Compatibility: Only in combination

with Fire-Kit protection insert

Function: For core drilling for drain body

vertical outlet System 125

DIBt Certification

Compatibility: For drain body

vertical outlet System 125

Function: For core drilling for drain body

vertical outlet

76

Ø

Ø

Ø

–

–

58/78/83

50/75

110

166

166

Hygiene and odour stop

Sludge trap

Sludge trap

Odour trap

Compatibility: For floor drain Ferrofix

System 125

Material: Stainless steel AISI 304

Note: Additional sizes on demand

Compatibility: Fits all drain bodies Ferrofix

System 125

Material: Polymer

Compatibility: For floor drain Ferrofix

System 125

Material: Stainless steel AISI 304

Sealing water height: 50 mm

Ø 122

120

5

0

3

9

3

1

4

2
