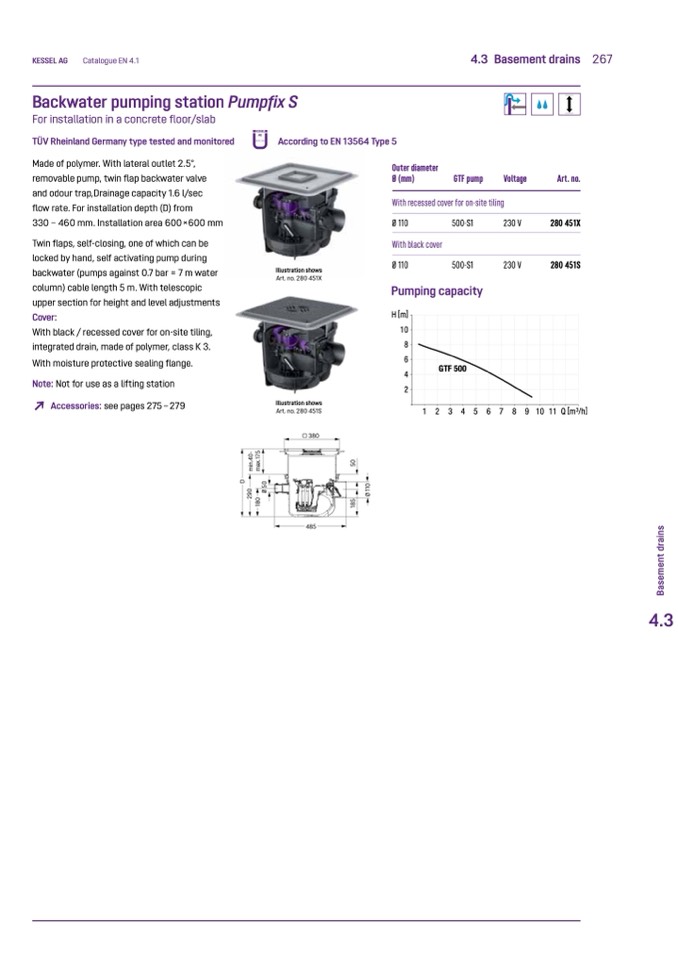

Backwater pumping station Pumpfix S

For installation in a concrete floor/slab

TÜV Rheinland Germany type tested and monitored

Made of polymer. With lateral outlet 2.5°,

removable pump, twin flap backwater valve

and odour trap,Drainage capacity 1.6 l/sec

flow rate. For installation depth (D) from

330 – 460 mm. Installation area 600×600 mm

Twin flaps, self-closing, one of which can be

locked by hand, self activating pump during

backwater (pumps against 0.7 bar = 7 m water

column) cable length 5 m. With telescopic

upper section for height and level adjustments

Cover:

With black / recessed cover for on-site tiling,

integrated drain, made of polymer, class K 3.

With moisture protective sealing flange.

Note: Not for use as a lifting station

↗

Accessories: see pages 275 – 279

DIN EN 13564

According to EN 13564 Type 5

Illustration shows

Art. no. 280 451X

Illustration shows

Art. no. 280 451S

□

380

485

Ø 110

With black cover

Ø 110

500-S1

500-S1

230 V

230 V

7 8 9

Outer diameter

Ø (mm)

GTF pump

Voltage

Art. no.

280 451X

280 451S

10 11 Q [m

3

/h]

With recessed cover for on-site tiling

Pumping capacity

H [m]

10

8

6

4

2

GTF 500

1 2 3 4

5 6

B

a

s

e

m

e

n

t

d

r

a

i

n

s

2

9

0

1

8

0

m

i

n

.

4

0

-

m

a

x

.

1

7

5

1

8

5

5

0

D

Ø

5

0

Ø

1

1

0
