4.3 Basement drains 269

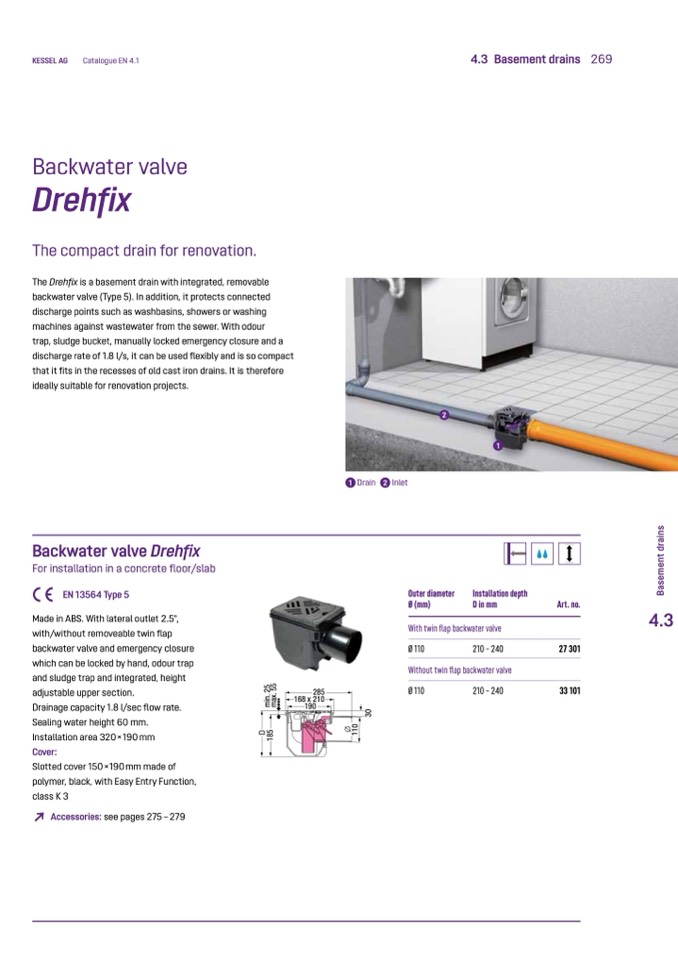

Backwater valve

Drehfix

The compact drain for renovation.

The Drehfix is a basement drain with integrated, removable

backwater valve (Type 5). In addition, it protects connected

discharge points such as washbasins, showers or washing

machines against wastewater from the sewer. With odour

trap, sludge bucket, manually locked emergency closure and a

discharge rate of 1.8 l/s, it can be used flexibly and is so compact

that it fits in the recesses of old cast iron drains. It is therefore

ideally suitable for renovation projects.

1 Drain 2 Inlet

1

Installation depth

D in mm

2

Backwater valve Drehfix

For installation in a concrete floor/slab

EN 13564 Type 5

Made in ABS. With lateral outlet 2.5°,

with/without removeable twin flap

backwater valve and emergency closure

which can be locked by hand, odour trap

and sludge trap and integrated, height

adjustable upper section.

285

Drainage capacity 1.8 l/sec flow rate.

Sealing water height 60 mm.

Installation area 320×190 mm

Cover:

Slotted cover 150×190 mm made of

polymer, black, with Easy Entry Function,

class K 3

↗

Accessories: see pages 275 – 279

Outer diameter

Ø (mm)

Art. no.

27 301

33 101

With twin flap backwater valve

Ø 110

210 – 240

Without twin flap backwater valve

168 x 210

190

Ø 110

210 – 240
