KESSEL AG

Catalogue EN 4.1

1.1 Backwater valves

31

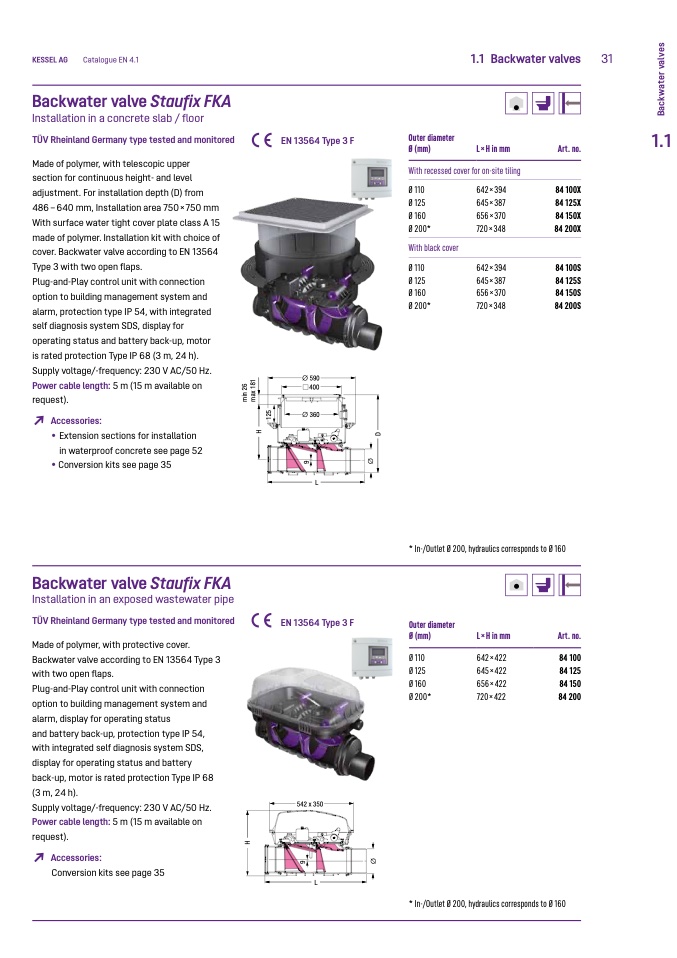

Backwater valve Staufix FKA

Installation in a concrete slab / floor

TÜV Rheinland Germany type tested and monitored

Made of polymer, with telescopic upper

section for continuous height- and level

adjustment. For installation depth (D) from

486 – 640 mm, Installation area 750×750 mm

With surface water tight cover plate class A 15

made of polymer. Installation kit with choice of

cover. Backwater valve according to EN 13564

Type 3 with two open flaps.

EN 13564 Type 3 F

Outer diameter

Ø (mm)

L×H in mm

Art. no.

84 100X

84 125X

84 150X

84 200X

84 100S

84 125S

84 150S

84 200S

1.1

Plug-and-Play control unit with connection

option to building management system and

alarm, protection type IP 54, with integrated

self diagnosis system SDS, display for

operating status and battery back-up, motor

is rated protection Type IP 68 (3 m, 24 h).

Supply voltage/-frequency: 230 V AC/50 Hz.

Power cable length: 5 m (15 m available on

400

request).

Ø 110

Ø 125

Ø 160

Ø 200*

With black cover

Ø 110

Ø 125

Ø 160

Ø 200*

642 × 394

645 × 387

656 × 370

720 × 348

642 × 394

645 × 387

656 × 370

720 × 348

↗

Accessories:

• Extension sections for installation

in waterproof concrete see page 52

• Conversion kits see page 35

Backwater valve Staufix FKA

Installation in an exposed wastewater pipe

TÜV Rheinland Germany type tested and monitored

Made of polymer, with protective cover.

Backwater valve according to EN 13564 Type 3

with two open flaps.

Plug-and-Play control unit with connection

option to building management system and

alarm, display for operating status

and battery back-up, protection type IP 54,

with integrated self diagnosis system SDS,

display for operating status and battery

back-up, motor is rated protection Type IP 68

(3 m, 24 h).

Supply voltage/-frequency: 230 V AC/50 Hz.

Power cable length: 5 m (15 m available on

request).

↗

Accessories:

Ø 590

Ø 360

L

EN 13564 Type 3 F

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160

Conversion kits see page 35

542 x 350

L

With recessed cover for on-site tiling

Outer diameter

Ø (mm)

Ø 110

Ø 125

Ø 160

Ø 200*

L×H in mm

642 × 422

645 × 422

656 × 422

720 × 422

Art. no.

84 100

84 125

84 150

84 200

9

9

Ø

Ø

D

H

m

i

n

2

6

m

a

x

1

8

1

H

1

2

5

B

a

c

k

w

a

t

e

r

v

a

l

v

e

s

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
