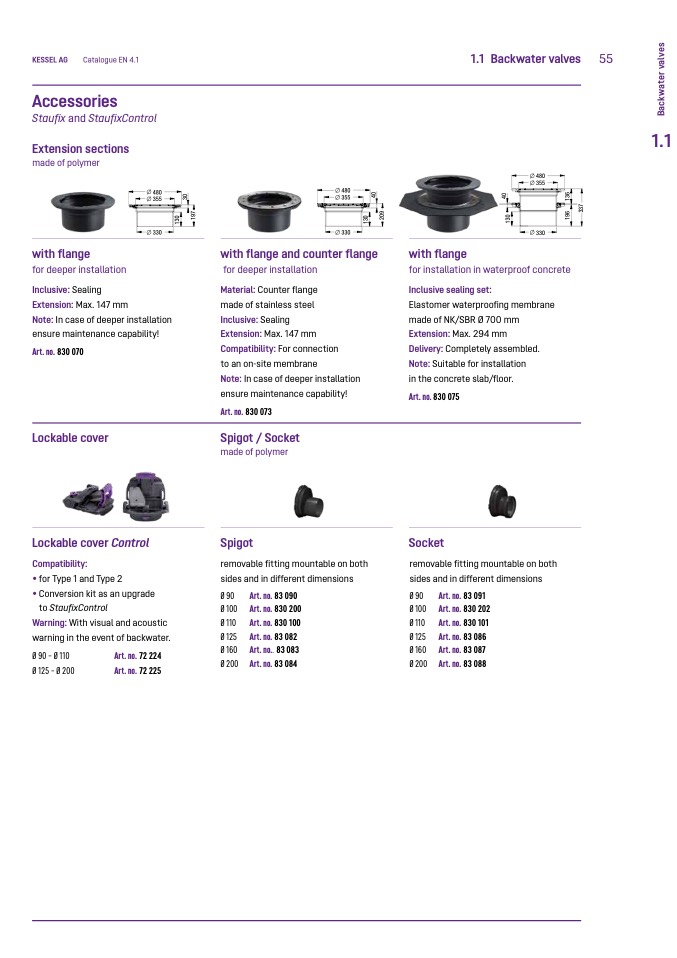

KESSEL AG

Catalogue EN 4.1

1.1 Backwater valves 55

Accessories

Staufix and StaufixControl

Extension sections

1.1

made of polymer

with flange

for deeper installation

480

355

1

3

0

3

0

1

9

7

1

3

0

4

0

2

0

9

1

3

0

4

0

1

9

6

1

3

6

3

3

7

B

a

c

k

w

a

t

e

r

v

a

l

v

e

s

Inclusive: Sealing

Extension: Max. 147 mm

Note: In case of deeper installation

ensure maintenance capability!

Art. no. 830 070

Lockable cover

Lockable cover Control

Compatibility:

• for Type 1 and Type 2

• Conversion kit as an upgrade

to StaufixControl

Warning: With visual and acoustic

warning in the event of backwater.

Ø 90 – Ø 110

Art. no. 72 224

Ø 125 – Ø 200

Art. no. 72 225

with flange and counter flange

for deeper installation

Material: Counter flange

made of stainless steel

Inclusive: Sealing

Extension: Max. 147 mm

Compatibility: For connection

to an on-site membrane

Note: In case of deeper installation

ensure maintenance capability!

Art. no. 830 073

Spigot / Socket

made of polymer

Spigot

removable fitting mountable on both

sides and in different dimensions

with flange

for installation in waterproof concrete

Inclusive sealing set:

Elastomer waterproofing membrane

made of NK/SBR Ø 700 mm

Extension: Max. 294 mm

Delivery: Completely assembled.

Note: Suitable for installation

in the concrete slab/floor.

Art. no. 830 075

Socket

removable fitting mountable on both

sides and in different dimensions

480

355

330

480

355

Ø90

Ø 100

Ø 110

Ø 125

Ø 160

Ø 200

Art. no. 83 090

Art. no. 830 200

Art. no. 830 100

Art. no. 83 082

Art. no.. 83 083

Art. no. 83 084

Ø90

Ø 100

Ø 110

Ø 125

Ø 160

Ø 200

Art. no. 83 091

Art. no. 830 202

Art. no. 830 101

Art. no. 83 086

Art. no. 83 087

Art. no. 83 088

330

330
