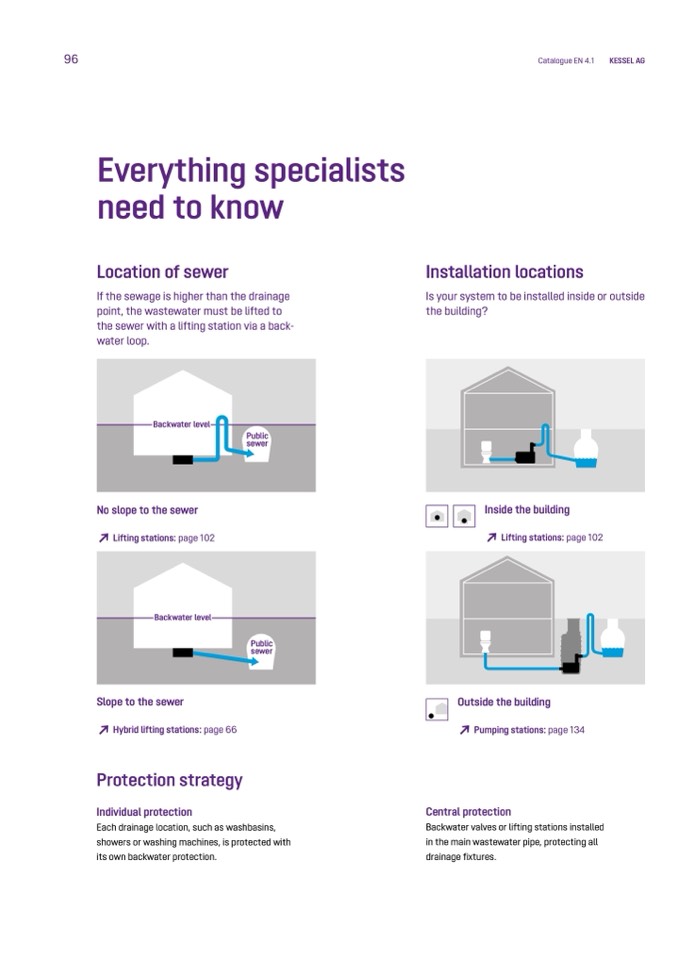

Everything specialists

need to know

Location of sewer

If the sewage is higher than the drainage

point, the wastewater must be lifted to

the sewer with a lifting station via a back-

water loop.

Installation locations

Is your system to be installed inside or outside

the building?

Backwater level

Public

sewer

No slope to the sewer

↗

Lifting stations: page 102

Inside the building

↗

Lifting stations: page 102

Backwater level

Public

sewer

Slope to the sewer

↗

Hybrid lifting stations: page 66

Protection strategy

Individual protection

Each drainage location, such as washbasins,

showers or washing machines, is protected with

its own backwater protection.

Outside the building

↗

Pumping stations: page 134

Central protection

Backwater valves or lifting stations installed

in the main wastewater pipe, protecting all

drainage fixtures.
