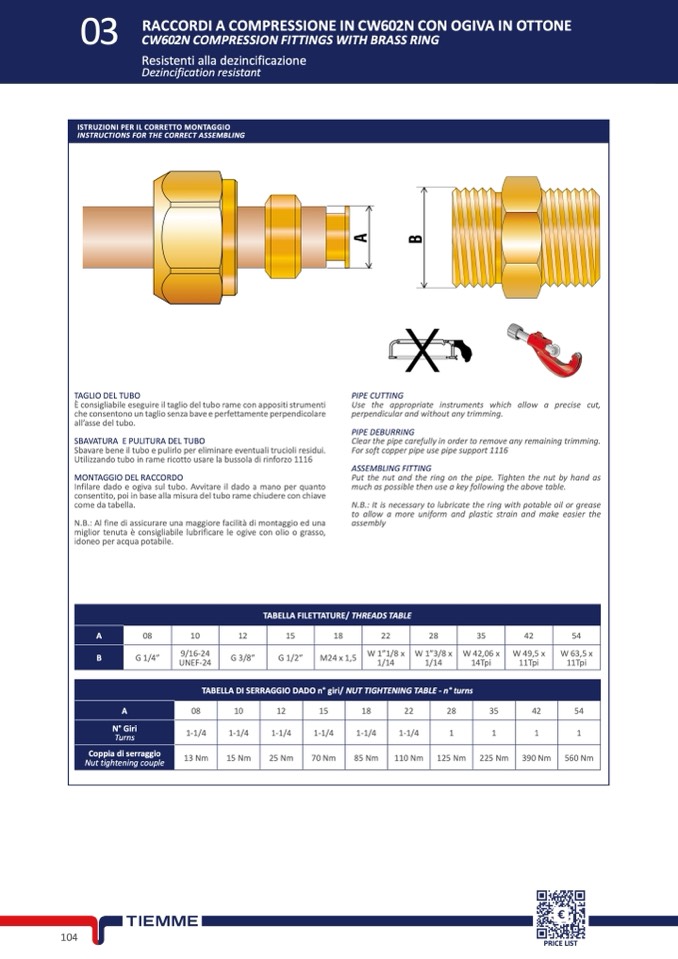

03

RACCORDI A COMPRESSIONE IN CW602N CON OGIVA IN OTTONE

CW602N COMPRESSION FITTINGS WITH BRASS RING

Resistenti alla dezincificazione

Dezincification resistant

ISTRUZIONI PER IL CORRETTO MONTAGGIO

INSTRUCTIONS FOR THE CORRECT ASSEMBLING

TAGLIO DEL TUBO

PIPE CUTTING

È consigliabile eseguire il taglio del tubo rame con appositi strumenti

che consentono un taglio senza bave e perfettamente perpendicolare

all’asse del tubo.

Use the appropriate instruments which allow a precise cut,

perpendicular and without any trimming.

Clear the pipe carefully in order to remove any remaining trimming.

For soft copper pipe use pipe support 1116

Put the nut and the ring on the pipe. Tighten the nut by hand as

much as possible then use a key following the above table.

N.B.: It is necessary to lubricate the ring with potable oil or grease

to allow a more uniform and plastic strain and make easier the

assembly

SBAVATURA E PULITURA DEL TUBO

PIPE DEBURRING

Sbavare bene il tubo e pulirlo per eliminare eventuali trucioli residui.

Utilizzando tubo in rame ricotto usare la bussola di rinforzo 1116

ASSEMBLING FITTING

MONTAGGIO DEL RACCORDO

Infilare dado e ogiva sul tubo. Avvitare il dado a mano per quanto

consentito, poi in base alla misura del tubo rame chiudere con chiave

come da tabella.

N.B.: Al fine di assicurare una maggiore facilità di montaggio ed una

miglior tenuta è consigliabile lubrificare le ogive con olio o grasso,

idoneo per acqua potabile.

TABELLA FILETTATURE/ THREADS TABLE

A

08

10

12

15

18

22

28

35

42

54

G 1/4”

9/16-24

G 3/8”

G 1/2”

M24 x 1,5

W 1”1/8 x W 1”3/8 x W 42,06 x W 49,5 x W 63,5 x

UNEF-24

1/14

1/14

14Tpi

11Tpi

11Tpi

08

10

12

15

18

22

28

35

42

54

1-1/4

1-1/4

1-1/4

1-1/4

1-1/4

1-1/4

1

1

1

1

13 Nm

15 Nm

25 Nm

70 Nm

85 Nm 110 Nm 125 Nm 225 Nm 390 Nm 560 Nm

B

A

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turns

N° Giri

Turns

Coppia di serraggio

Nut tightening couple
