RACCORDI A COMPRESSIONE CON TENUTA O-RING PER TUBO RAME - SERIE 1300

1300 SERIES - COMPRESSION FITTINGS WITH O-RING FOR COPPER PIPE

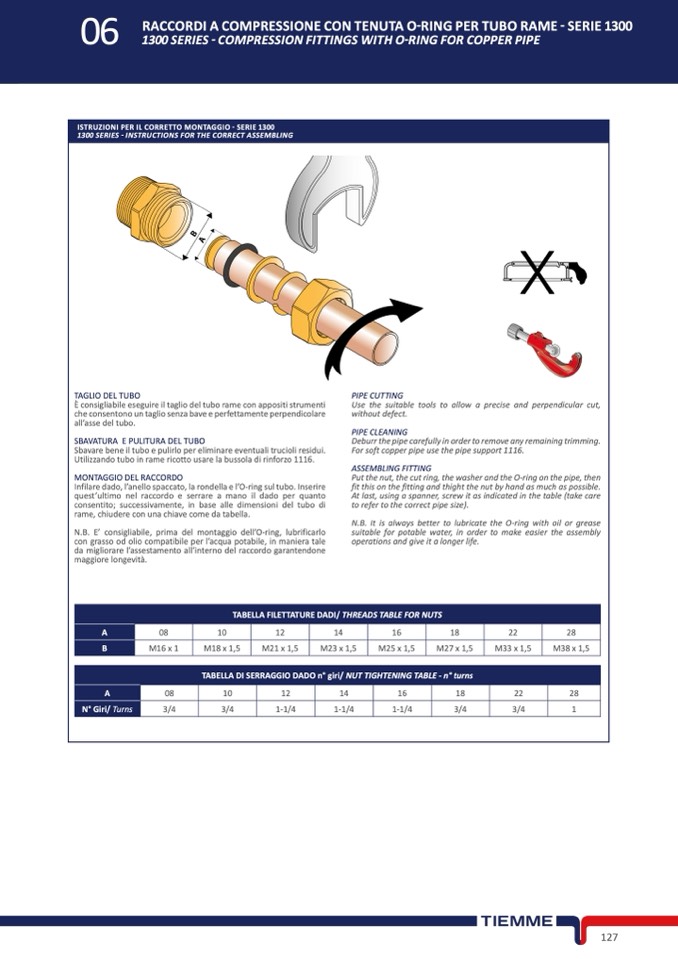

ISTRUZIONI PER IL CORRETTO MONTAGGIO - SERIE 1300

1300 SERIES - INSTRUCTIONS FOR THE CORRECT ASSEMBLING

TAGLIO DEL TUBO

PIPE CUTTING

È consigliabile eseguire il taglio del tubo rame con appositi strumenti

che consentono un taglio senza bave e perfettamente perpendicolare

all’asse del tubo.

Use the suitable tools to allow a precise and perpendicular cut,

without defect.

Deburr the pipe carefully in order to remove any remaining trimming.

For soft copper pipe use the pipe support 1116.

Put the nut, the cut ring, the washer and the O-ring on the pipe, then

fit this on the fitting and thight the nut by hand as much as possible.

At last, using a spanner, screw it as indicated in the table (take care

to refer to the correct pipe size).

N.B. It is always better to lubricate the O-ring with oil or grease

suitable for potable water, in order to make easier the assembly

operations and give it a longer life.

SBAVATURA E PULITURA DEL TUBO

PIPE CLEANING

Sbavare bene il tubo e pulirlo per eliminare eventuali trucioli residui.

Utilizzando tubo in rame ricotto usare la bussola di rinforzo 1116.

ASSEMBLING FITTING

MONTAGGIO DEL RACCORDO

Infilare dado, l’anello spaccato, la rondella e l’O-ring sul tubo. Inserire

quest’ultimo nel raccordo e serrare a mano il dado per quanto

consentito; successivamente, in base alle dimensioni del tubo di

rame, chiudere con una chiave come da tabella.

N.B. E’ consigliabile, prima del montaggio dell’O-ring, lubrificarlo

con grasso od olio compatibile per l’acqua potabile, in maniera tale

da migliorare l’assestamento all’interno del raccordo garantendone

maggiore longevit

à.

TABELLA FILETTATURE DADI/ THREADS TABLE FOR NUTS

A

08

10

12

14

16

18

22

28

M16 x 1

M18 x 1,5

M21 x 1,5

M23 x 1,5

M25 x 1,5

M27 x 1,5

M33 x 1,5

M38 x 1,5

08

10

12

14

16

18

22

28

3/4

3/4

1-1/4

1-1/4

1-1/4

3/4

3/4

1

B

A

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turns

N° Giri/ Turns
