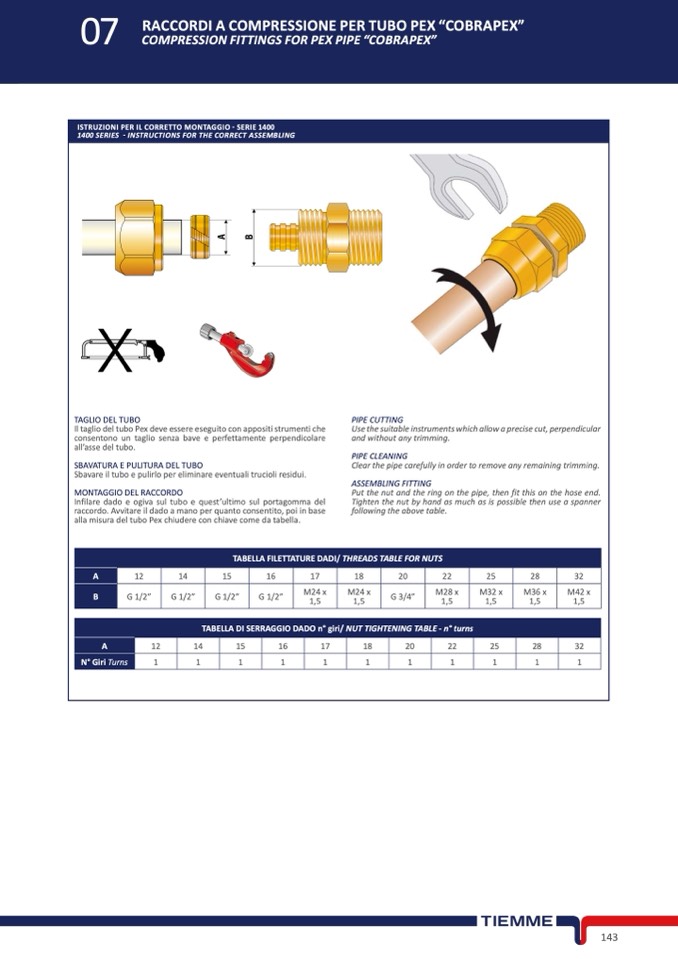

RACCORDI A COMPRESSIONE PER TUBO PEX “COBRAPEX”

COMPRESSION FITTINGS FOR PEX PIPE “COBRAPEX”

ISTRUZIONI PER IL CORRETTO MONTAGGIO - SERIE 1400

1400 SERIES - INSTRUCTIONS FOR THE CORRECT ASSEMBLING

TAGLIO DEL TUBO

PIPE CUTTING

Il taglio del tubo Pex deve essere eseguito con appositi strumenti che

consentono un taglio senza bave e perfettamente perpendicolare

all’asse del tubo.

Use the suitable instruments which allow a precise cut, perpendicular

and without any trimming.

Clear the pipe carefully in order to remove any remaining trimming.

Put the nut and the ring on the pipe, then fit this on the hose end.

Tighten the nut by hand as much as is possible then use a spanner

following the above table.

SBAVATURA E PULITURA DEL TUBO

PIPE CLEANING

Sbavare il tubo e pulirlo per eliminare eventuali trucioli residui.

ASSEMBLING FITTING

MONTAGGIO DEL RACCORDO

Infilare dado e ogiva sul tubo e quest’ultimo sul portagomma del

raccordo. Avvitare il dado a mano per quanto consentito, poi in base

alla misura del tubo Pex chiudere con chiave come da tabella.

A

TABELLA FILETTATURE DADI/ THREADS TABLE FOR NUTS

12

14

15

16

17

18

20

22

25

28

32

G 1/2”

G 1/2”

G 1/2”

G 1/2”

M24 x

M24 x

G 3/4”

M28 x

M32 x

M36 x

M42 x

1,5

1,5

1,5

1,5

1,5

1,5

12

14

15

16

17

18

20

22

25

28

32

1

1

1

1

1

1

1

1

1

1

1

B

TABELLA DI SERRAGGIO DADO n° giri/ NUT TIGHTENING TABLE - n° turns

A

N° Giri Turns
