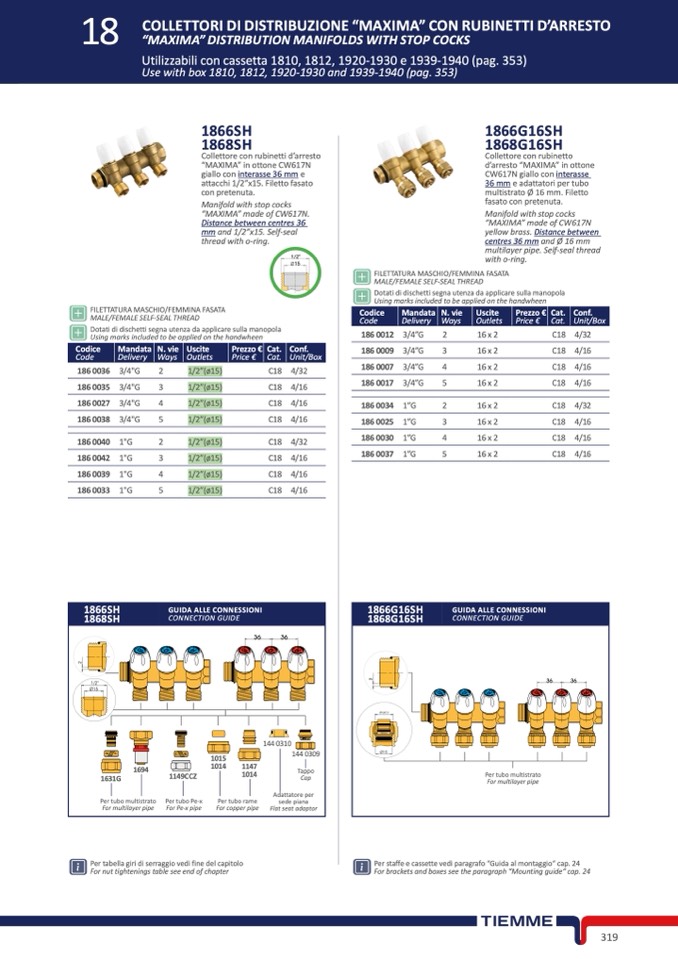

18

COLLETTORI DI DISTRIBUZIONE “MAXIMA” CON RUBINETTI D’ARRESTO

“MAXIMA” DISTRIBUTION MANIFOLDS WITH STOP COCKS

Utilizzabili con cassetta 1810, 1812, 1920-1930 e 1939-1940 (pag. 353)

Use with box 1810, 1812, 1920-1930 and 1939-1940 (pag. 353)

1866SH

1866G16SH

1868SH

1868G16SH

Collettore con rubinetti d’arresto

“MAXIMA” in ottone CW617N

giallo con interasse 36 mm e

attacchi 1/2”x15. Filetto fasato

con pretenuta.

Manifold with stop cocks

“MAXIMA” made of CW617N.

Distance between centres 36

mm and 1/2”x15. Self-seal

thread with o-ring.

1/2”

15

Price € Cat. Unit/Box

C18 4/32

C18 4/16

C18 4/16

C18 4/16

C18 4/32

C18 4/16

C18 4/16

C18 4/16

Collettore con rubinetto

d’arresto “MAXIMA” in ottone

CW617N giallo con interasse

36 mm e adattatori per tubo

multistrato Ø 16 mm. Filetto

fasato con pretenuta.

Manifold with stop cocks

“MAXIMA” made of CW617N

yellow brass. Distance between

centres 36 mm and Ø 16 mm

multilayer pipe. Self-seal thread

with o-ring.

MALE/FEMALE SELF-SEAL THREAD

Dotati di dischetti segna utenza da applicare sulla manopola

FILETTATURA MASCHIO/FEMMINA FASATA

Using marks included to be applied on the handwheen

FILETTATURA MASCHIO/FEMMINA FASATA

MALE/FEMALE SELF-SEAL THREAD

Codice

Mandata

N. vie Uscite

Prezzo €

Cat. Conf.

C18 4/32

C18 4/16

C18 4/16

C18 4/16

C18 4/32

C18 4/16

C18 4/16

C18 4/16

Dotati di dischetti segna utenza da applicare sulla manopola

N. vie

Code

Delivery

Ways Outlets

Price €

Cat. Unit/Box

Code

Delivery

Ways

Outlets

Using marks included to be applied on the handwheen

186 0012

186 0009

186 0007

186 0017

186 0034

186 0025

186 0030

186 0037

3/4”G

3/4”G

3/4”G

3/4”G

1”G

1”G

1”G

1”G

2

3

4

5

2

3

4

5

16x2

16x2

16x2

16x2

16x2

16x2

16x2

16x2

Codice

Mandata

Uscite

Prezzo € Cat. Conf.

186 0036

186 0035

186 0027

186 0038

186 0040

186 0042

186 0039

186 0033

3/4"G

3/4"G

3/4"G

3/4"G

1"G

1"G

1"G

1"G

2

3

4

5

2

3

4

5

1/2”(ø15)

1/2”(ø15)

1/2”(ø15)

1/2”(ø15)

1/2”(ø15)

1/2”(ø15)

1/2”(ø15)

1/2”(ø15)

1866SH

1868SH

GUIDA ALLE CONNESSIONI

1866G16SH

1868G16SH

GUIDA ALLE CONNESSIONI

CONNECTION GUIDE

CONNECTION GUIDE

Per tubo multistrato

Per tubo Pe-x

Per tubo rame

Adattatore per

sede piana

Flat seat adaptor

For multilayer pipe

For Pe-x pipe

For copper pipe

Per tabella giri di serraggio vedi fine del capitolo

Per staffe e cassette vedi paragrafo “Guida al montaggio“ cap. 24

For nut tightenings table see end of chapter

For brackets and boxes see the paragraph “Mounting guide“ cap. 24

1015

1014

144 0310

144 0309

1631G

1694

1149CCZ

1147

1014

Tappo

Per tubo multistrato

Cap

For multilayer pipe

319
