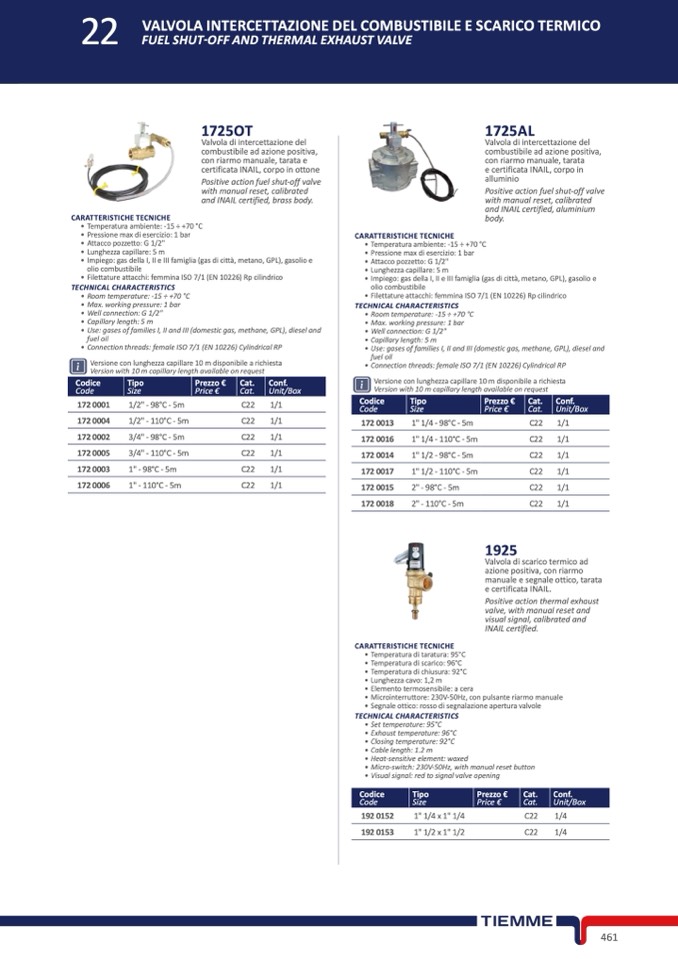

22

VALVOLA INTERCETTAZIONE DEL COMBUSTIBILE E SCARICO TERMICO

FUEL SHUT-OFF AND THERMAL EXHAUST VALVE

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Version with 10 m capillary length available on request

• Temperatura ambiente: -15 ÷ +70 °C

• Pressione max di esercizio: 1 bar

• Attacco pozzetto: G 1/2"

• Lunghezza capillare: 5 m

• Impiego: gas della I, II e III famiglia (gas di città, metano, GPL), gasolio e

olio combustibile

• Filettature attacchi: femmina ISO 7/1 (EN 10226) Rp cilindrico

TECHNICAL CHARACTERISTICS

• Room temperature: -15 ÷ +70 °C

• Max. working pressure: 1 bar

• Well connection: G 1/2"

• Capillary length: 5 m

• Use: gases of families I, II and III (domestic gas, methane, GPL), diesel and

fuel oil

• Connection threads: female ISO 7/1 (EN 10226) Cylindrical RP

Versione con lunghezza capillare 10 m disponibile a richiesta

1725OT

1725AL

CARATTERISTICHE TECNICHE

• Temperatura ambiente: -15 ÷ +70 °C

• Pressione max di esercizio: 1 bar

• Attacco pozzetto: G 1/2"

• Lunghezza capillare: 5 m

• Impiego: gas della I, II e III famiglia (gas di citt

à, metano, GPL), gasolio e

olio combustibile

• Filettature attacchi: femmina ISO 7/1 (EN 10226) Rp cilindrico

TECHNICAL CHARACTERISTICS

• Room temperature: -15 ÷ +70 °C

• Max. working pressure: 1 bar

• Well connection: G 1/2"

• Capillary length: 5 m

• Use: gases of families I, II and III (domestic gas, methane, GPL), diesel and

fuel oil

• Connection threads: female ISO 7/1 (EN 10226) Cylindrical RP

Versione con lunghezza capillare 10 m disponibile a richiesta

CARATTERISTICHE TECNICHE

Valvola di intercettazione del

combustibile ad azione positiva,

con riarmo manuale, tarata e

certificata INAIL, corpo in ottone

Positive action fuel shut-off valve

with manual reset, calibrated

and INAIL certified, brass body.

Valvola di intercettazione del

combustibile ad azione positiva,

con riarmo manuale, tarata

e certificata INAIL, corpo in

alluminio

Positive action fuel shut-off valve

with manual reset, calibrated

and INAIL certified, aluminium

body.

172 0001

172 0004

172 0002

172 0005

172 0003

172 0006

1/2"-98°C-5m

1/2" - 110°C - 5m

3/4"-98°C-5m

3/4" - 110°C - 5m

1"-98°C-5m

1"-110°C-5m

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

172 0013

172 0016

172 0014

172 0017

172 0015

172 0018

CARATTERISTICHE TECNICHE

• Temperatura di taratura: 95°C

• Temperatura di scarico: 96°C

• Temperatura di chiusura: 92°C

• Lunghezza cavo: 1,2 m

Version with 10 m capillary length available on request

1"1/4-98°C-5m

1"1/4-110°C-5m

1"1/2-98°C-5m

1"1/2-110°C-5m

2"-98°C-5m

2"-110°C-5m

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

• Elemento termosensibile: a cera

• Microinterruttore: 230V-50Hz, con pulsante riarmo manuale

• Segnale ottico: rosso di segnalazione apertura valvole

TECHNICAL CHARACTERISTICS

• Set temperature: 95°C

• Exhaust temperature: 96°C

• Closing temperature: 92°C

• Cable length: 1.2 m

• Heat-sensitive element: waxed

• Micro-switch: 230V-50Hz, with manual reset button

• Visual signal: red to signal valve opening

192 0152

1" 1/4 x 1" 1/4

C22

1/4

192 0153

1" 1/2 x 1" 1/2

C22

1/4

1925

Valvola di scarico termico ad

azione positiva, con riarmo

manuale e segnale ottico, tarata

e certificata INAIL.

Positive action thermal exhaust

valve, with manual reset and

visual signal, calibrated and

INAIL certified.

461
