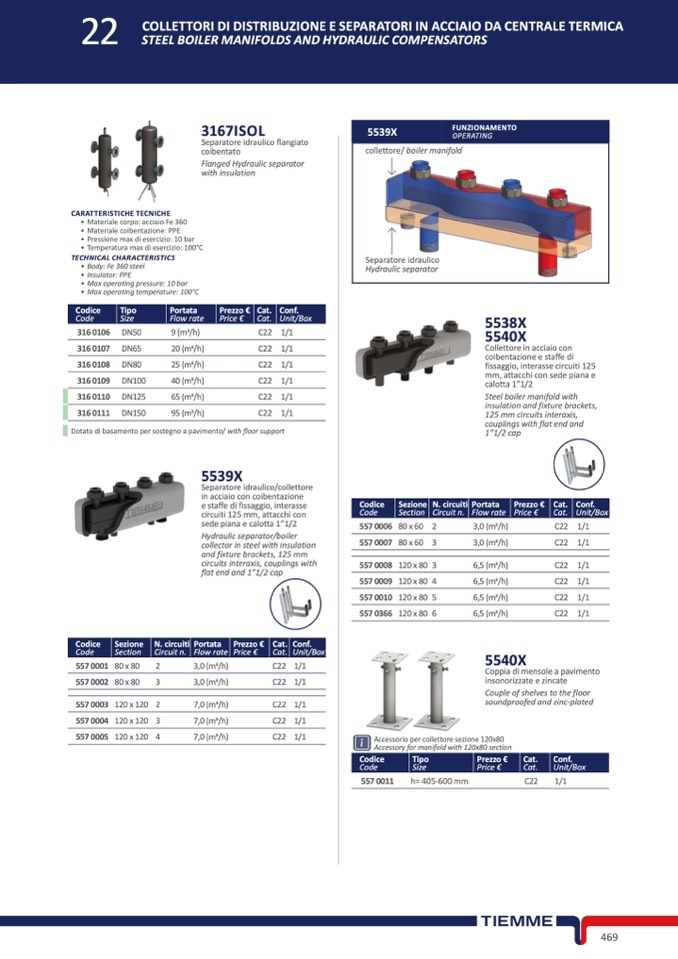

22

COLLETTORI DI DISTRIBUZIONE E SEPARATORI IN ACCIAIO DA CENTRALE TERMICA

STEEL BOILER MANIFOLDS AND HYDRAULIC COMPENSATORS

5539X

FUNZIONAMENTO

OPERATING

collettore/ boiler manifold

Separatore idraulico

Hydraulic separator

Codice

Code

Tipo

Size

Portata

Flow rate

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Sezione

Section

N. circuiti

Circuit n.

Portata

Flow rate

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Sezione

Section

N. circuiti

Circuit n.

Portata

Flow rate

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

CARATTERISTICHE TECNICHE

• Materiale corpo: acciaio Fe 360

• Materiale coibentazione: PPE

• Pressione max di esercizio: 10 bar

• Temperatura max di esercizio: 100°C

TECHNICAL CHARACTERISTICS

• Body: Fe 360 steel

• Insulator: PPE

• Max operating pressure: 10 bar

• Max operating temperature: 100°C

3167ISOL

Separatore idraulico flangiato

coibentato

Flanged Hydraulic separator

with insulation

316 0106 DN50

316 0107 DN65

316 0108 DN80

316 0109 DN100

316 0110 DN125

316 0111 DN150

9 (m3/h)

20 (m3/h)

25 (m3/h)

40 (m3/h)

65 (m3/h)

95 (m3/h)

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

5540X

5538X

Dotato di basamento per sostegno a pavimento/ with floor support

Collettore in acciaio con

coibentazione e staffe di

fissaggio, interasse circuiti 125

mm, attacchi con sede piana e

calotta 1”1/2

Steel boiler manifold with

insulation and fixture brackets,

125 mm circuits interaxis,

couplings with flat end and

1”1/2 cap

5539X

Separatore idraulico/collettore

in acciaio con coibentazione

e staffe di fissaggio, interasse

circuiti 125 mm, attacchi con

sede piana e calotta 1”1/2

Hydraulic separator/boiler

collector in steel with insulation

and fixture brackets, 125 mm

circuits interaxis, couplings with

flat end and 1”1/2 cap

557 0006

557 0007

557 0008

557 0009

557 0010

557 0366

80x60 2

80x60 3

120x80 3

120x80 4

120x80 5

120x80 6

3,0 (m3/h)

3,0 (m3/h)

6,5 (m3/h)

6,5 (m3/h)

6,5 (m3/h)

6,5 (m3/h)

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

557 0001

557 0002

557 0003

557 0004

557 0005

80x80

2

80x80

3

120 x 120 2

120 x 120 3

120 x 120 4

3,0 (m3/h)

3,0 (m3/h)

7,0 (m3/h)

7,0 (m3/h)

7,0 (m3/h)

C22 1/1

C22 1/1

C22 1/1

C22 1/1

C22 1/1

5540X

Coppia di mensole a pavimento

insonorizzate e zincate

Couple of shelves to the floor

soundproofed and zinc-plated

Accessorio per collettore sezione 120x80

Accessory for manifold with 120x80 section

557 0011

h= 405-600 mm

C22

1/1

469
