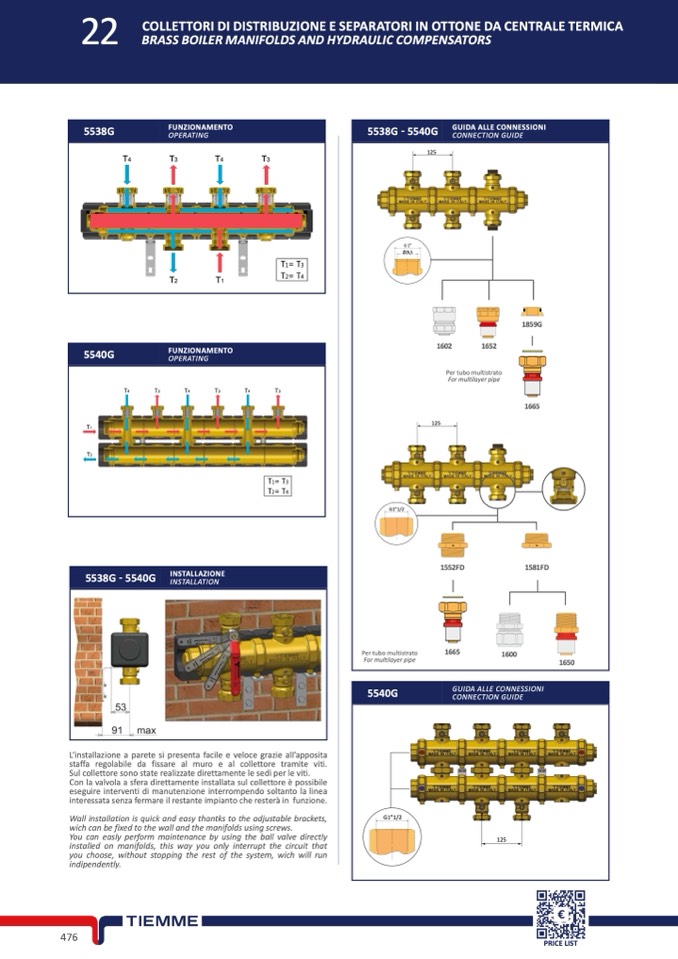

22

COLLETTORI DI DISTRIBUZIONE E SEPARATORI IN OTTONE DA CENTRALE TERMICA

BRASS BOILER MANIFOLDS AND HYDRAULIC COMPENSATORS

5538G

FUNZIONAMENTO

OPERATING

T

4

T

3

T

4

T

3

T

2

T

1

T

1

= T

3

T

2

= T

4

5538G - 5540G

GUIDA ALLE CONNESSIONI

CONNECTION GUIDE

125

G 1”

Ø26,5

1859G

1602

1652

Per tubo multistrato

For multilayer pipe

G1”1/2

125

1552FD

1665

Per tubo multistrato

1665

For multilayer pipe

1581FD

1600

1650

5540G

FUNZIONAMENTO

OPERATING

T

1

T

2

T

4

T

3

T

4

T

3

T

4

T

3

T

1

= T

3

T

2

= T

4

5538G - 5540G

INSTALLAZIONE

INSTALLATION

L’installazione a parete si presenta facile e veloce grazie all’apposita

staffa regolabile da fissare al muro e al collettore tramite viti.

Sul collettore sono state realizzate direttamente le sedi per le viti.

Con la valvola a sfera direttamente installata sul collettore è possibile

eseguire interventi di manutenzione interrompendo soltanto la linea

interessata senza fermare il restante impianto che resterà in funzione.

Wall installation is quick and easy thantks to the adjustable brackets,

wich can be fixed to the wall and the manifolds using screws.

You can easly perform maintenance by using the ball valve directly

installed on manifolds, this way you only interrupt the circuit that

you choose, without stopping the rest of the system, wich will run

indipendently.

476

5540G

GUIDA ALLE CONNESSIONI

CONNECTION GUIDE

G1”1/2

125
