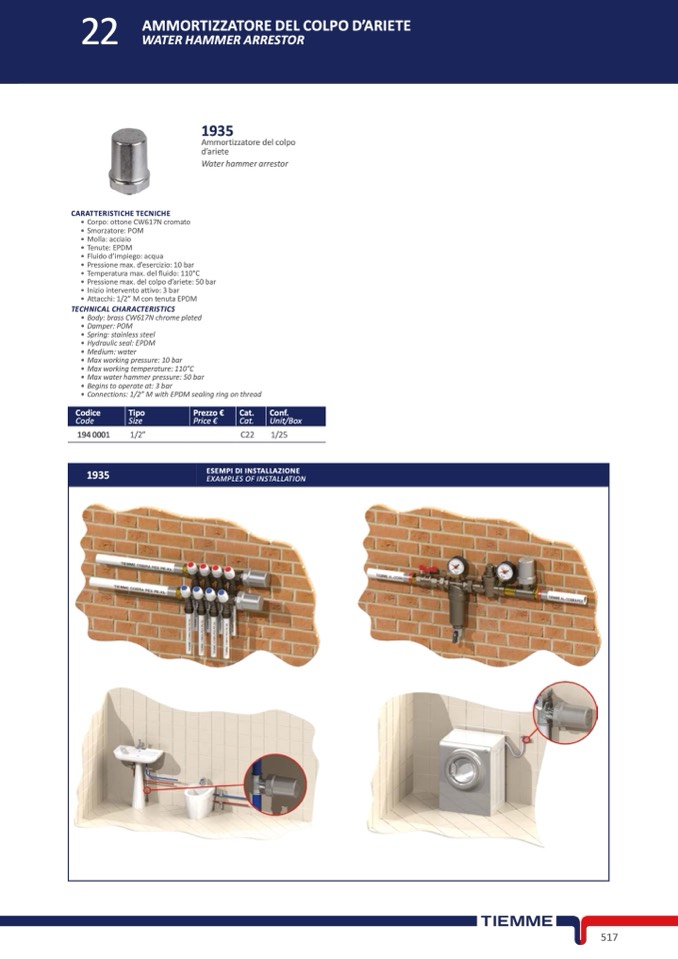

AMMORTIZZATORE DEL COLPO D’ARIETE

WATER HAMMER ARRESTOR

Codice

Code

Tipo

Size

Prezzo €

Price €

Cat.

Cat.

Conf.

Unit/Box

1935

ESEMPI DI INSTALLAZIONE

EXAMPLES OF INSTALLATION

CARATTERISTICHE TECNICHE

• Corpo: ottone CW617N cromato

• Smorzatore: POM

• Molla: acciaio

• Tenute: EPDM

• Fluido d’impiego: acqua

• Pressione max. d’esercizio: 10 bar

• Temperatura max. del fluido: 110°C

• Pressione max. del colpo d’ariete: 50 bar

• Inizio intervento attivo: 3 bar

• Attacchi: 1/2” M con tenuta EPDM

TECHNICAL CHARACTERISTICS

• Body: brass CW617N chrome plated

• Damper: POM

• Spring: stainless steel

• Hydraulic seal: EPDM

• Medium: water

• Max working pressure: 10 bar

• Max working temperature: 110°C

• Max water hammer pressure: 50 bar

• Begins to operate at: 3 bar

• Connections: 1/2” M with EPDM sealing ring on thread

194 0001

1/2”

C22

1/25

1935

Ammortizzatore del colpo

d’ariete

Water hammer arrestor
