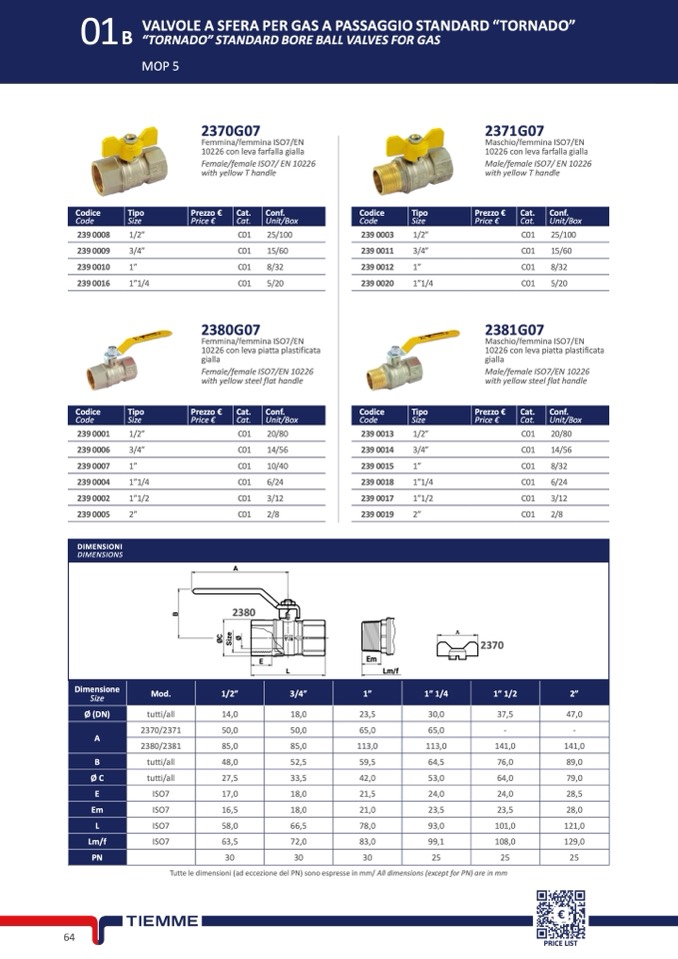

01
B
“TORNADO” STANDARD BORE BALL VALVES FOR GAS
MOP 5
VALVOLE A SFERA PER GAS A PASSAGGIO STANDARD “TORNADO”
2370G07
2371G07
Femmina/femmina ISO7/EN
10226 con leva farfalla gialla
Maschio/femmina ISO7/EN
10226 con leva farfalla gialla
Codice
Code
Tipo
Size
Prezzo €
Price €
Cat.
Cat.
Conf.
Unit/Box
Codice
Code
Tipo
Size
Prezzo €
Price €
Cat.
Cat.
Conf.
Unit/Box
239 0008
239 0009
239 0010
239 0016
1/2”
3/4”
1”
1”1/4
Female/female ISO7/ EN 10226
with yellow T handle
C01 25/100
C01 15/60
C01 8/32
C01 5/20
239 0003
239 0011
239 0012
239 0020
1/2”
3/4”
1”
1”1/4
Male/female ISO7/ EN 10226
with yellow T handle
C01 25/100
C01 15/60
C01 8/32
C01 5/20
2380G07
2381G07
Femmina/femmina ISO7/EN
10226 con leva piatta plastificata
gialla
Maschio/femmina ISO7/EN
10226 con leva piatta plastificata
gialla
Female/female ISO7/EN 10226
with yellow steel flat handle
Male/female ISO7/EN 10226
with yellow steel flat handle
Codice
Code
Tipo
Size
Prezzo €
Price €
Cat.
Cat.
Conf.
Unit/Box
Codice
Code
Tipo
Size
Prezzo €
Price €
Cat.
Cat.
Conf.
Unit/Box
239 0001
239 0006
239 0007
239 0004
239 0002
239 0005
1/2”
C01
3/4”
C01
1”
C01
1”1/4
C01
1”1/2
C01
2”
C01
20/80
14/56
10/40
6/24
3/12
2/8
239 0013
239 0014
239 0015
239 0018
239 0017
239 0019
1/2”
C01
3/4”
C01
1”
C01
1”1/4
C01
1”1/2
C01
2”
C01
20/80
14/56
8/32
6/24
3/12
2/8
DIMENSIONI
DIMENSIONS
A
2380
E
2370
L
Lm/f
Em
B
Ø
C
S
i
z
e
Ø
Dimensione
Size
Mod.
1/2”
3/4”
1”
1” 1/4
1” 1/2
2”
Ø (DN)
A
B
ØC
E
Em
L
Lm/f
PN
tutti/all
14,0
2370/2371
50,0
2380/2381
85,0
tutti/all
48,0
tutti/all
27,5
18,0
50,0
85,0
52,5
33,5
18,0
18,0
66,5
72,0
23,5
30,0
37,5
65,0
65,0
113,0
113,0
59,5
64,5
42,0
53,0
21,5
24,0
21,0
23,5
78,0
93,0
83,0
99,1
47,0
-
-
ISO7
ISO7
ISO7
ISO7
17,0
16,5
58,0
63,5
141,0
141,0
76,0
89,0
64,0
79,0
24,0
28,5
23,5
28,0
101,0
121,0
108,0
129,0
30
30
30
25
25
25
Tutte le dimensioni (ad eccezione del PN) sono espresse in mm/ All dimensions (except for PN) are in mm
64
