code

Description

Dimension

pmax

Gf015sc

Gf020sc

Gf025sc

TEcHnIcal fEaTurEs

working Temperature

use

connection

seals

- 20 °C – + 60 °C

Non – aggressive gases – Family 1 – 2 – 3 and air

1⁄2” – 3⁄4” – 1” Wall boiler – ISO 228

NBR

102

Gas FILTers

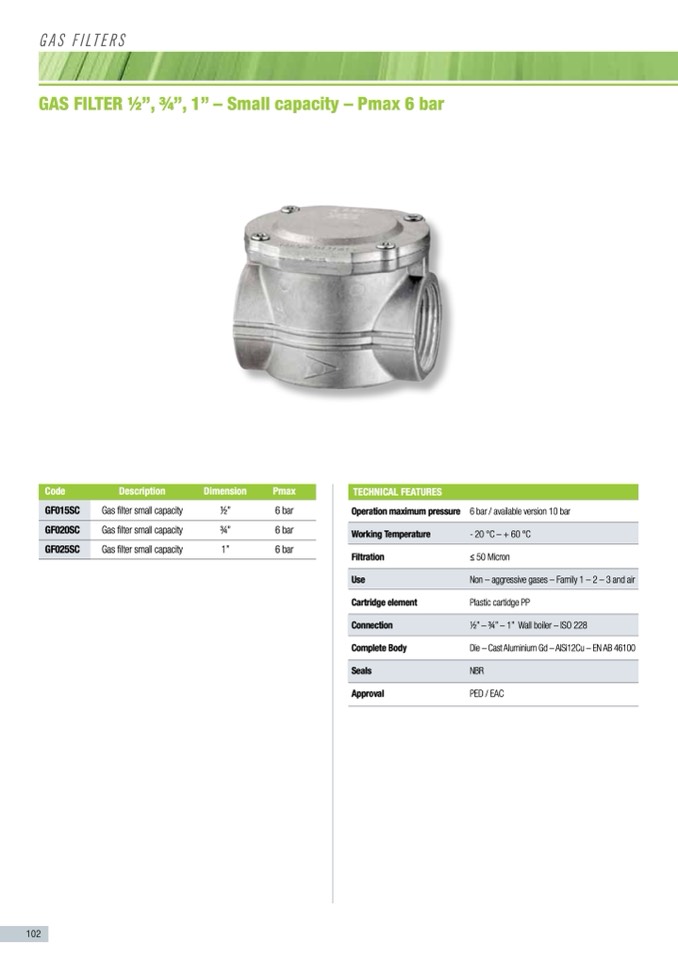

GAS FIlTER 1⁄2”, 3⁄4”, 1” – Small capacity – Pmax 6 bar

Gas filter small capacity

1⁄2”

Gas filter small capacity

3⁄4”

Gas filter small capacity

1”

6 bar

6 bar

6 bar

operation maximum pressure

filtration

cartridge element

complete body

approval

6 bar / available version 10 bar

≤ 50 Micron

Plastic cartidge PP

Die – Cast Aluminium Gd – AlSi12Cu – EN AB 46100

PED / EAC
