Gf015

Gf020

Gf025

GfD25

TEcHnIcal fEaTurEs

working Temperature

use

seals

-Screw–NPT1⁄4”

- Manometer

- 20 °C – + 60 °C

Non – aggressive gases – Family 1 – 2 – 3 and air

NBR

Gf015-TpIo

Gf020-TpIo

Gf025-TpIo

GfD25-TpIo

Inlet - outlet

Theread gas 1/2” – 3⁄4” 1” – ISO 228

connection

DN25-SlidingAluminium flangePN10

Gf015-sp

Gf020-sp

Gf025-sp

GfD25-sp

104

cod›e› .....

Description

Dimension

pmax

Gas FILTers

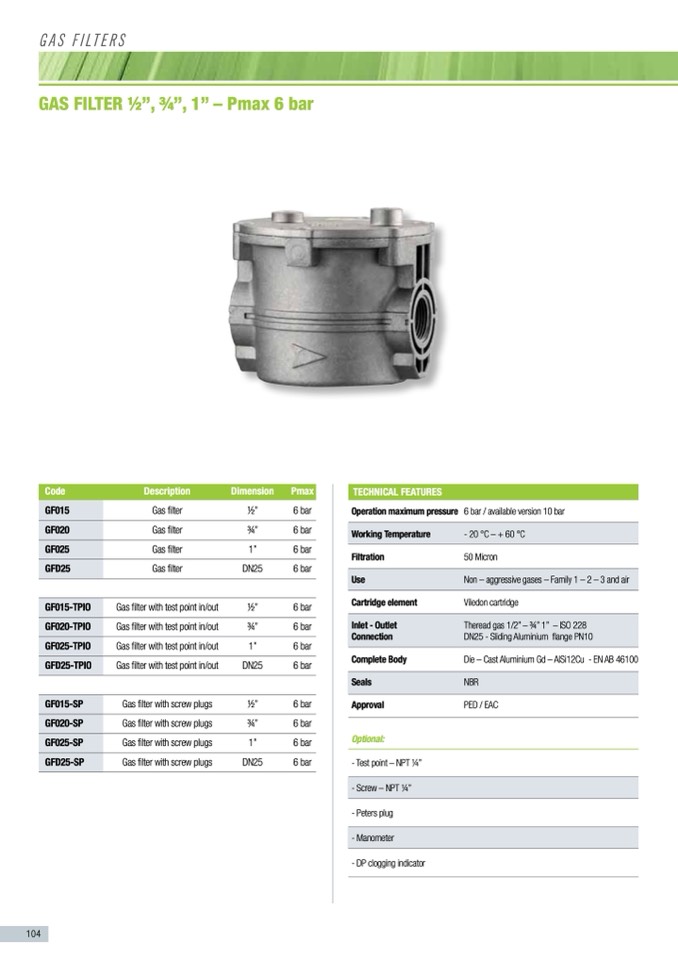

GAS FIlTER 1⁄2”, 3⁄4”, 1” – Pmax 6 bar

Gas filter

1⁄2”

Gas filter

3⁄4”

Gas filter

1”

Gas filter

DN25

Gas filter with test point in/out

1⁄2”

Gas filter with test point in/out

3⁄4”

Gas filter with test point in/out

1”

Gas filter with test point in/out

DN25

Gas filter with screw plugs

1⁄2”

Gas filter with screw plugs

3⁄4”

Gas filter with screw plugs

1”

Gas filter with screw plugs

DN25

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

operation maximum pressure

filtration

cartridge element

complete body

approval

Optional:

- Test point – NPT 1⁄4”

- Peters plug

- DP clogging indicator

6 bar / available version 10 bar

50 Micron

Viledon cartridge

Die–CastAluminiumGd–AlSi12Cu -ENAB46100

PED / EAC
