cod›e› .....

Description

Dimension pmax

GfD65

GfD80

GfD100

TEcHnIcal fEaTurEs

working Temperature

use

connection

seals

-Screw–NPT1⁄4”

- Manometer

- 20 °C – + 60 °C

Non – aggressive gases – Family 1 – 2 – 3 and air

Flanged PN16 – DN65 – DN80 – DN100

NBR

GfD65-TpIo

GfD80-TpIo

GfD100-TpIo

GfD65-sp

GfD80-sp

GfD100-sp

108

Gas FILTers

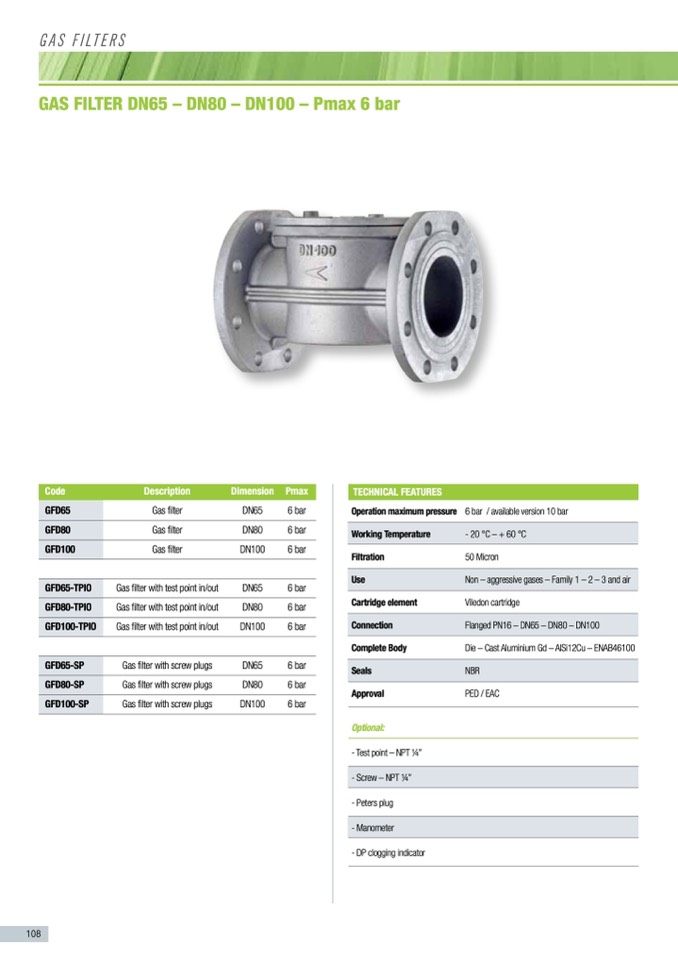

GAS FIlTER DN65 – DN80 – DN100 – Pmax 6 bar

Gas filter

Gas filter

Gas filter

Gas filter with test point in/out

Gas filter with test point in/out

Gas filter with test point in/out

Gas filter with screw plugs

Gas filter with screw plugs

Gas filter with screw plugs

DN65

6 bar

DN80

6 bar

DN100

6 bar

DN65

6 bar

DN80

6 bar

DN100

6 bar

DN65

6 bar

DN80

6 bar

DN100

6 bar

operation maximum pressure

filtration

cartridge element

complete body

approval

Optional:

- Test point – NPT 1⁄4”

- Peters plug

- DP clogging indicator

6 bar / available version 10 bar

50 Micron

Viledon cartridge

Die – Cast Aluminium Gd – AlSi12Cu – ENAB46100

PED / EAC
