code
Description
Dimension pmax
aV015fo
aV020fo
aV025fo
aVD25fo
Inlet connection
Thread gas 1⁄2” 3⁄4” and 1” - ISO 228
- outlet
DN25 - Sliding Aluminium flange PN10
aV015fo-fr
aV020fo-fr
aV025fo-fr
aVD25fo-fr
supply voltage
230V (-15%+10%) 50-60Hz
110V (-15%+10%) 50-60Hz
24Vdc (-15%+10%) 50-60Hz
cpI-1
TEcHnIcal fEaTurEs
max number of operations
use
working Temperature
protection degree
20 per minute
Non – aggressive gases – Family 1 – 2 – 3 and air
- 20 °C – 60 °C
IP65
130

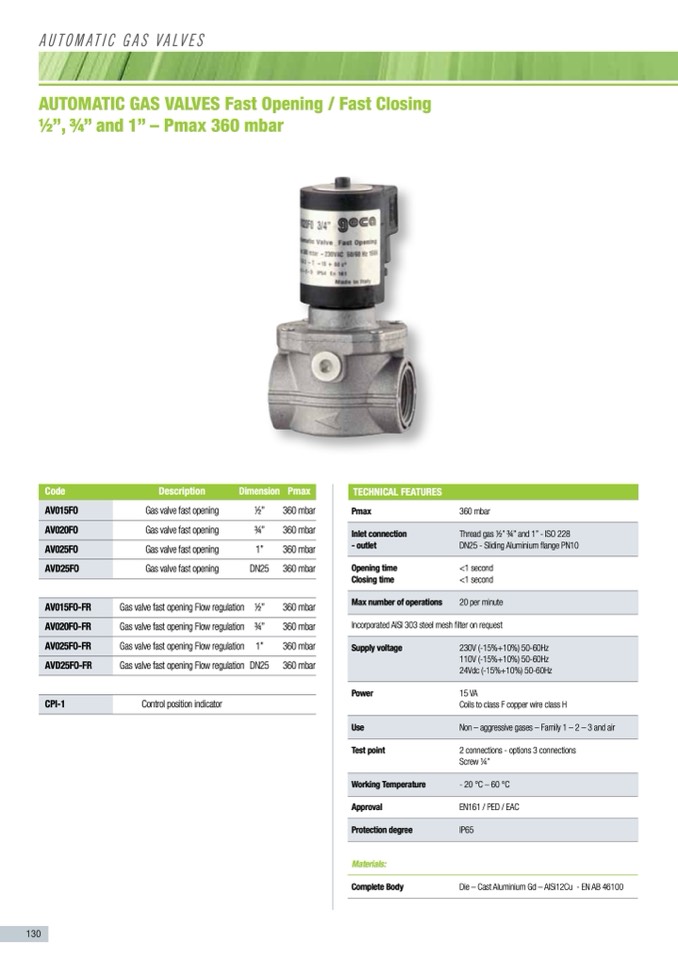

aUToMaTIC Gas vaLves
AuTOmATIC GAS VAlVES Fast Opening / Fast Closing
1⁄2”, 3⁄4” and 1” – Pmax 360 mbar
Gas valve fast opening
Gas valve fast opening
Gas valve fast opening
Gas valve fast opening
Gas valve fast opening Flow regulation
Gas valve fast opening Flow regulation
Gas valve fast opening Flow regulation
GasvalvefastopeningFlowregulation DN25
Control position indicator
1⁄2”
3⁄4”
1”
DN25
360 mbar
360 mbar
360 mbar
360 mbar
360 mbar
360 mbar
360 mbar
360 mbar
pmax
opening time
closing time
360 mbar
<1 second
<1 second
1⁄2”
3⁄4”
1”
Incorporated AISI 303 steel mesh filter on request
power
Test point
approval
Materials:
15VA
Coils to class F copper wire class H
2 connections - options 3 connections
Screw 1⁄4”
EN161 / PED / EAC
complete body
Die–CastAluminiumGd–AlSi12Cu -ENAB46100
