code

Description

Dimension pmax

aV015fo-Hc

aV020fo-Hc

aV025fo-Hc

aVD25fo-Hc

Inlet connection

Thread gas 1⁄2” 3⁄4” and 1” - ISO 228

- outlet

DN25 - Sliding Aluminium flange PN10

aV015fo-fr-Hc

aV020fo-fr-Hc

aV025fo-fr-Hc

aVD25fo-fr-Hc

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

cpI-1-Hc

TEcHnIcal fEaTurEs

max number of operations

use

working Temperature

protection degree

20 per minute

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

132

aUToMaTIC Gas vaLves

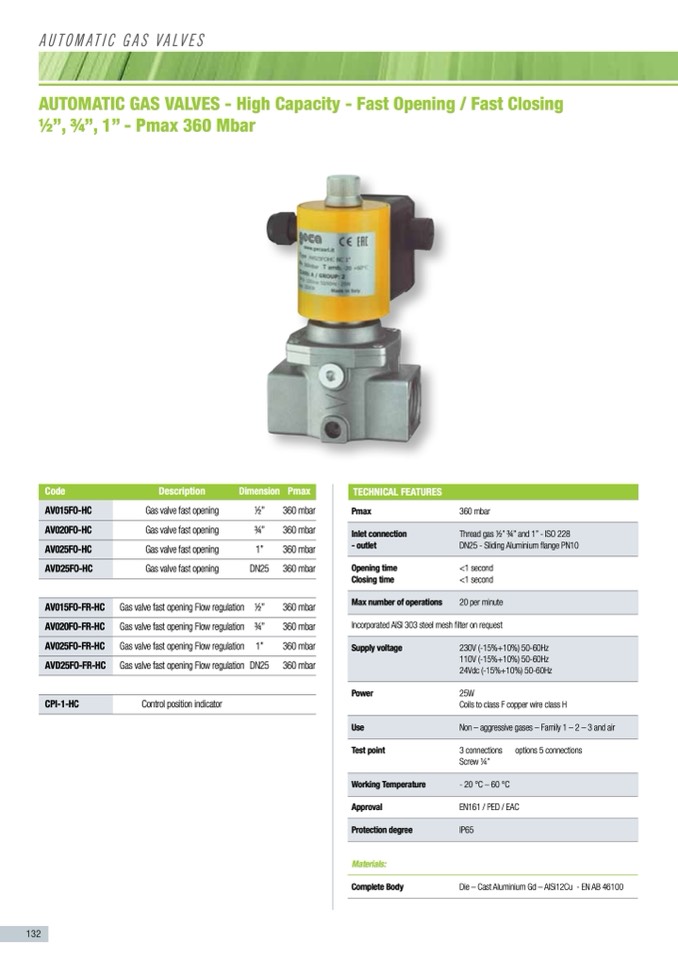

AuTOmATIC GAS VAlVES - High Capacity - Fast Opening / Fast Closing

1⁄2”, 3⁄4”, 1” - Pmax 360 mbar

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening Flow regulation

Gas valve fast opening Flow regulation

Gas valve fast opening Flow regulation

GasvalvefastopeningFlowregulation DN25

Control position indicator

1⁄2”

3⁄4”

1”

DN25

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

pmax

opening time

closing time

360 mbar

<1 second

<1 second

1⁄2”

3⁄4”

1”

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

25W

Coils to class F copper wire class H

3 connections options 5 connections

Screw 1⁄4”

EN161 / PED / EAC

complete body

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
