code

Description

Dimension pmax

aV032fo

aV040fo

aV050fo

aVD32fo

aVD40fo

aVD50fo

Inlet connection

Thread gas 1 1⁄4”, 1 1⁄2” and 2” - ISO 228

-outlet

DN32 DN40 DN50 - Sliding Aluminium flange PN10

aV032fo-fr

aV040fo-fr

aV050fo-fr

aVD32fo-fr

aVD40fo-fr

aVD50fo-fr

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

cpI-2

TEcHnIcal fEaTurEs

max number of operations

use

working Temperature

protection degree

20 per minute

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

134

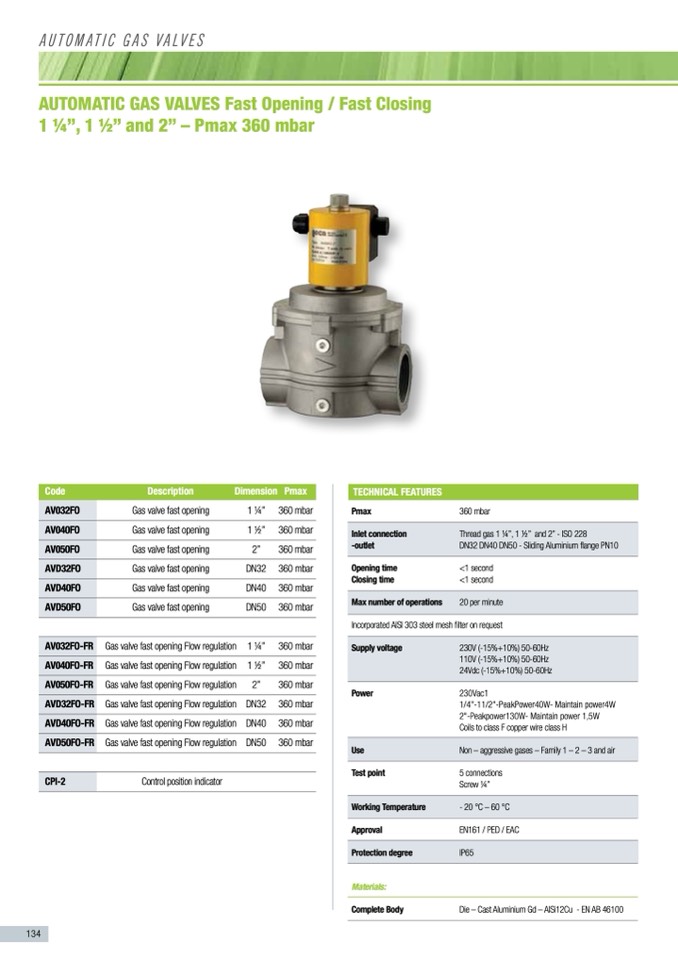

aUToMaTIC Gas vaLves

AuTOmATIC GAS VAlVES Fast Opening / Fast Closing

1 1⁄4”, 1 1⁄2” and 2” – Pmax 360 mbar

Gas valve fast opening

11⁄4”

Gas valve fast opening

11⁄2”

Gas valve fast opening

2”

Gas valve fast opening

DN32

Gas valve fast opening

DN40

Gas valve fast opening

DN50

Gas valve fast opening Flow regulation 11⁄4”

Gas valve fast opening Flow regulation 11⁄2”

Gas valve fast opening Flow regulation

2”

Gas valve fast opening Flow regulation DN32

Gas valve fast opening Flow regulation DN40

Gas valve fast opening Flow regulation DN50

Control position indicator

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

pmax

opening time

closing time

360 mbar

<1 second

<1 second

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

230Vac1

1/4"-11/2"-PeakPower40W- Maintain power4W

2"-Peakpower130W- Maintain power 1,5W

Coils to class F copper wire class H

5 connections

Screw 1⁄4”

EN161 / PED / EAC

complete body

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
