code

Description

Dimension pmax

aV032fo-Ec

aV040fo-Ec

aVD32fo-Ec

aVD40fo-Ec

Inlet connection

Thread gas 1 1⁄4”, 1 1⁄2” - ISO 228

-outlet

DN32 DN40 - Sliding Aluminium flange PN10

cpI-2

TEcHnIcal fEaTurEs

max number of operations

supply voltage

use

working Temperature

protection degree

20 per minute

230V (-15%+10%) 50-60Hz

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

136

aUToMaTIC Gas vaLves

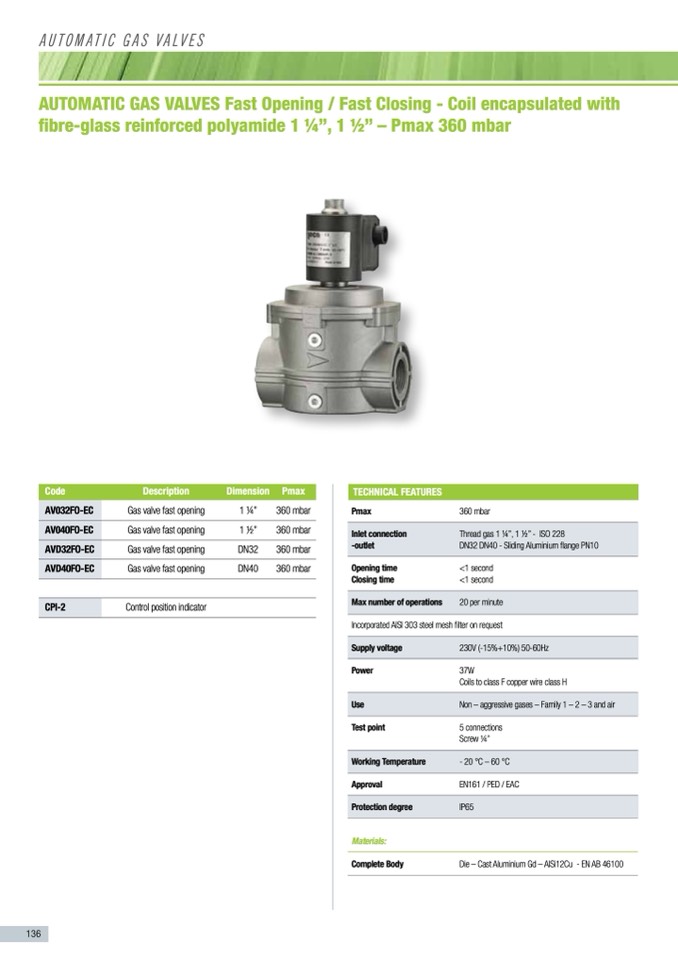

AuTOmATIC GAS VAlVES Fast Opening / Fast Closing - Coil encapsulated with

fibre-glass reinforced polyamide 1 1⁄4”, 1 1⁄2” – Pmax 360 mbar

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Control position indicator

1 1⁄4”

1 1⁄2”

DN32

DN40

360 mbar

360 mbar

360 mbar

360 mbar

pmax

opening time

closing time

360 mbar

<1 second

<1 second

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

complete body

37W

Coils to class F copper wire class H

5 connections

Screw 1⁄4”

EN161 / PED / EAC

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
