aUToMaTIC Gas vaLves

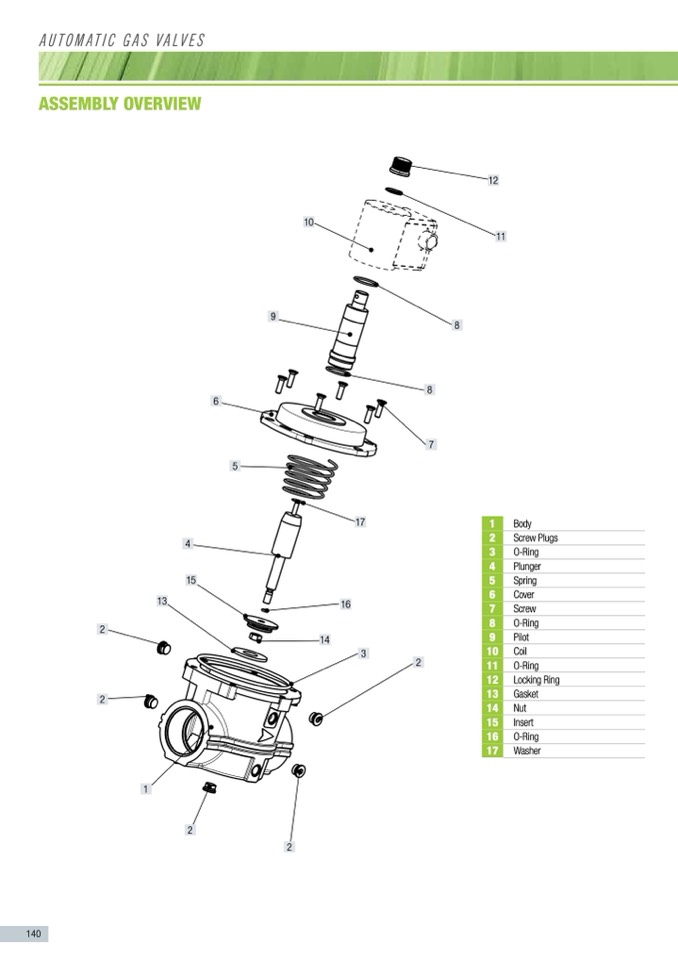

ASSEmbly OVERVIEw

13

2

2

2

1

2

4

15

17

16

14

3

1

Body

2

Screw Plugs

3

O-Ring

4

Plunger

5

Spring

6

Cover

7

Screw

8

O-Ring

9

Pilot

10 Coil

11 O-Ring

12 Locking Ring

13 Gasket

14 Nut

15 Insert

16 O-Ring

17 Washer

6

5

9

8

8

7

2

10

12

11
