code

Description

Dimension pmax

aV015fo-6b

aV020fo-6b

aV025fo-6b

aVD025fo-6b

Inlet connection - outlet

Thread gas 1⁄2” 3⁄4” and 1” - ISO 228

DN25 - Sliding Aluminium flange PN10

aV015fo-fr-6b

aV020fo-fr-6b

aV025fo-fr-6b

aVD025fo-fr-6b

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

cpI-1-6b

TEcHnIcal fEaTurEs

max number of operations

use

working Temperature

protection degree

20 per minute

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

148

aUToMaTIC Gas vaLves

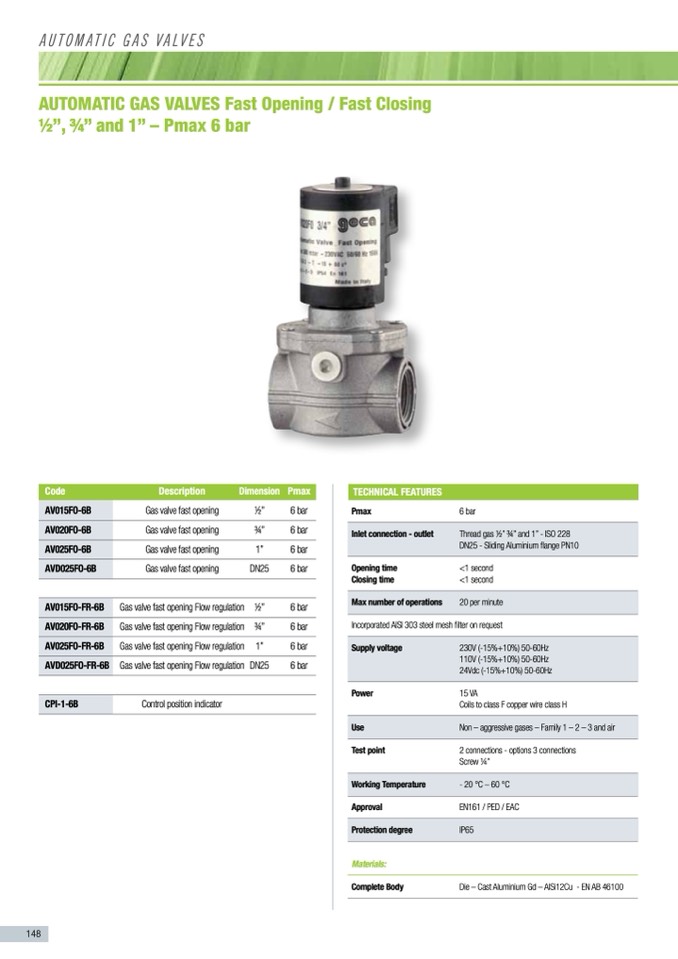

AuTOmATIC GAS VAlVES Fast Opening / Fast Closing

1⁄2”, 3⁄4” and 1” – Pmax 6 bar

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening Flow regulation

Gas valve fast opening Flow regulation

Gas valve fast opening Flow regulation

GasvalvefastopeningFlowregulation DN25

Control position indicator

1⁄2”

3⁄4”

1”

DN25

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

pmax

opening time

closing time

6 bar

<1 second

<1 second

1⁄2”

3⁄4”

1”

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

15VA

Coils to class F copper wire class H

2 connections - options 3 connections

Screw 1⁄4”

EN161 / PED / EAC

complete body

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
