code

Description

Dimension pmax

aV032fo-6b

aV040fo-6b

aV050fo-6b

aVD32fo-6b

aVD40fo-6b

aVD50fo-6b

Inlet connection - outlet

Thread gas 1 1⁄4”, 1 1⁄2” and 2” - ISO 228

DN32 DN40 DN50 - Sliding Aluminium flange PN10

aV032fo-fr-6b

aV040fo-fr-6b

aV050fo-fr-6b

aVD32fo-fr-6b

aVD40fo-fr-6b

aVD50fo-fr-6b

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

cpI-2-6b

TEcHnIcal fEaTurEs

max number of operations

use

working Temperature

protection degree

20 per minute

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

150

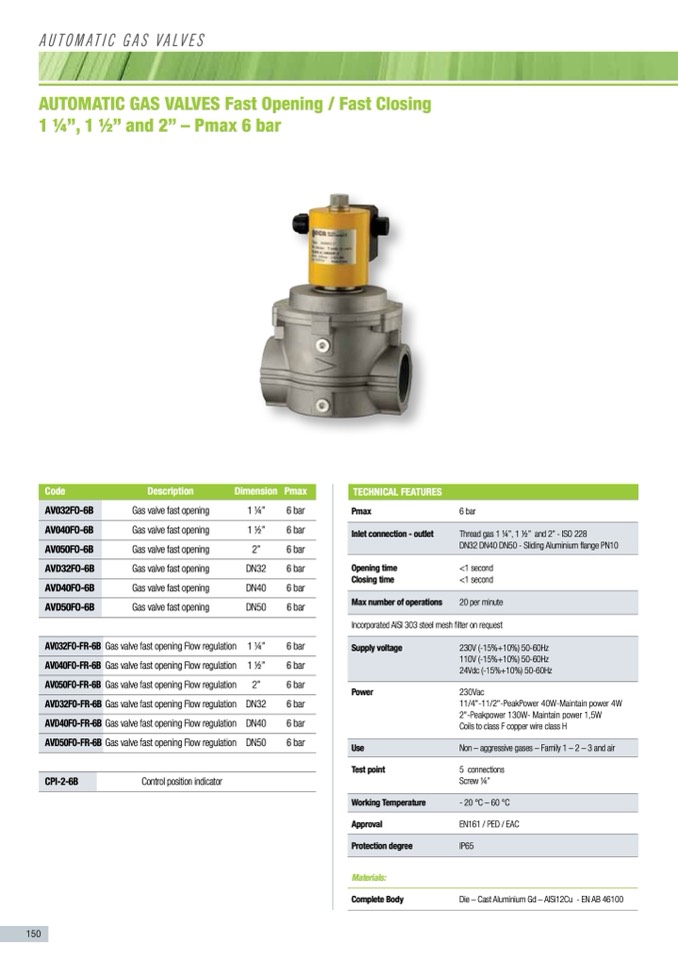

aUToMaTIC Gas vaLves

AuTOmATIC GAS VAlVES Fast Opening / Fast Closing

1 1⁄4”, 1 1⁄2” and 2” – Pmax 6 bar

Gas valve fast opening

11⁄4”

Gas valve fast opening

11⁄2”

Gas valve fast opening

2”

Gas valve fast opening

DN32

Gas valve fast opening

DN40

Gas valve fast opening

DN50

Gas valve fast opening Flow regulation 11⁄4”

Gas valve fast opening Flow regulation 11⁄2”

Gas valve fast opening Flow regulation

2”

Gas valve fast opening Flow regulation DN32

Gas valve fast opening Flow regulation DN40

Gas valve fast opening Flow regulation DN50

Control position indicator

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

pmax

opening time

closing time

6 bar

<1 second

<1 second

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

complete body

230Vac

11/4"-11/2"-PeakPower 40W-Maintain power 4W

2"-Peakpower 130W- Maintain power 1,5W

Coils to class F copper wire class H

5 connections

Screw 1⁄4”

EN161 / PED / EAC

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
