code

Description

Dimension pmax

aV015so

aV020so

aV025so

aVD25so

Inlet connection

Thread gas 1⁄2” 3⁄4” and 1” - ISO 228

- outlet

DN25 - Sliding Aluminium flange PN10

cpI-1

TEcHnIcal fEaTurEs

adjustable

use

working Temperature

protection degree

Opening time / Rapid stroke / Flow regulation

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

158

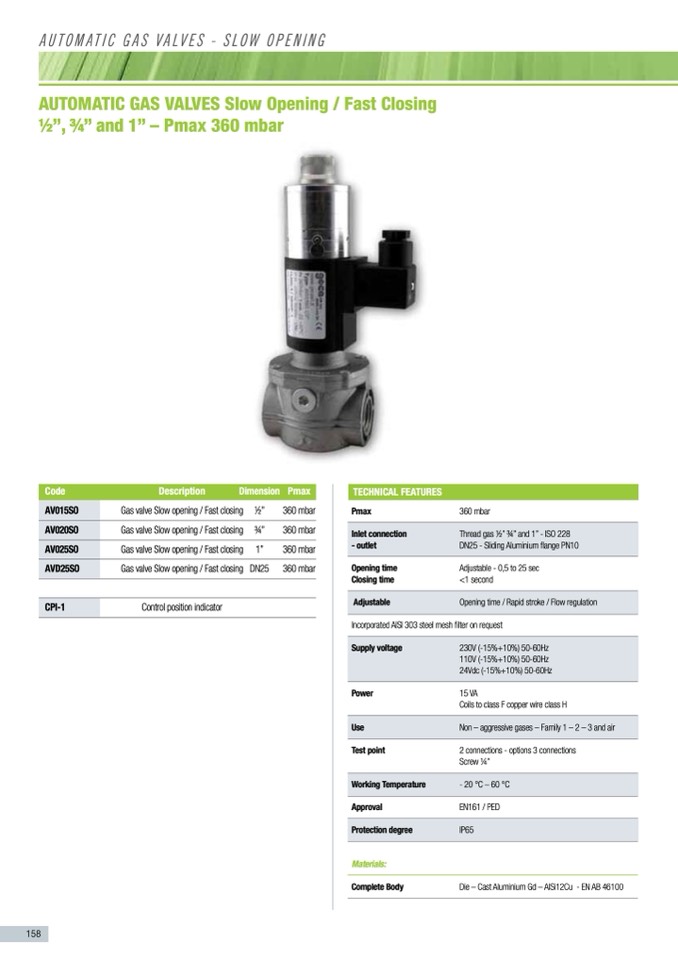

aUToMaTIC Gas vaLves - sLow openInG

AuTOmATIC GAS VAlVES Slow Opening / Fast Closing

1⁄2”, 3⁄4” and 1” – Pmax 360 mbar

Gas valve Slow opening / Fast closing 1⁄2”

Gas valve Slow opening / Fast closing 3⁄4”

Gas valve Slow opening / Fast closing 1”

Gas valve Slow opening / Fast closing DN25

Control position indicator

360 mbar

360 mbar

360 mbar

360 mbar

pmax

opening time

closing time

360 mbar

Adjustable - 0,5 to 25 sec

<1 second

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

15VA

Coils to class F copper wire class H

2 connections - options 3 connections

Screw 1⁄4”

EN161 / PED

complete body

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
