code

Description

Dimension pmax

aV032so

aV040so

aV050so

aVD32so

aVD40so

aVD50so

Inlet connection

Thread gas 1 1⁄4”, 1 1⁄2” and 2” - ISO 228

-outlet

DN32 DN40 DN50 - Sliding Aluminium flange PN10

cpI-2

TEcHnIcal fEaTurEs

adjustable

use

working Temperature

protection degree

Opening time / Rapid stroke / Flow regulation

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

160

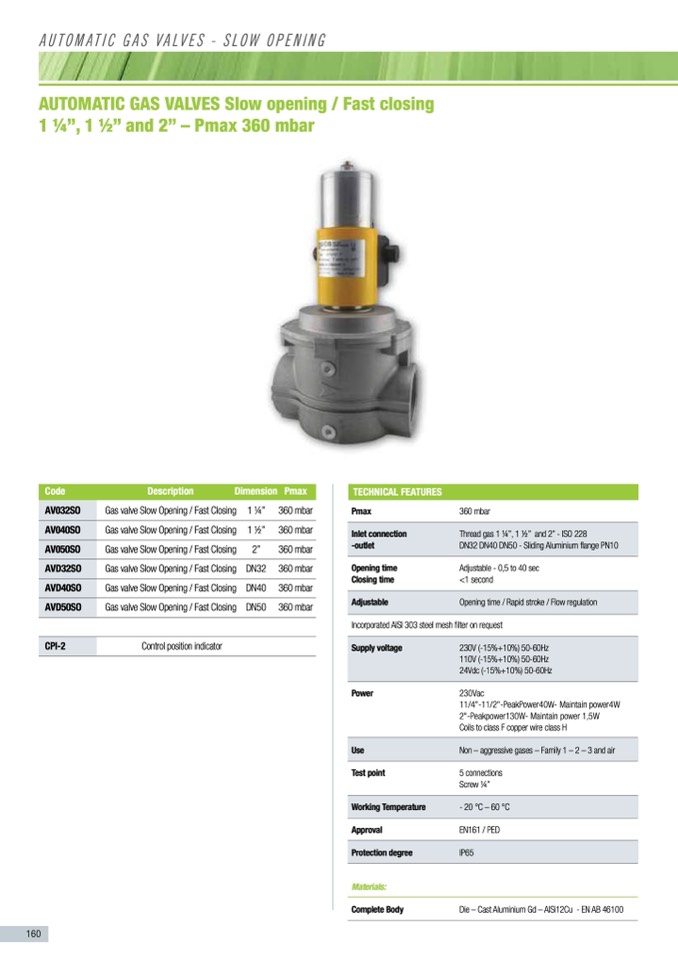

aUToMaTIC Gas vaLves - sLow openInG

AuTOmATIC GAS VAlVES Slow opening / Fast closing

1 1⁄4”, 1 1⁄2” and 2” – Pmax 360 mbar

Gas valve Slow Opening / Fast Closing 11⁄4”

Gas valve Slow Opening / Fast Closing 11⁄2”

Gas valve Slow Opening / Fast Closing

2”

Gas valve Slow Opening / Fast Closing DN32

Gas valve Slow Opening / Fast Closing DN40

Gas valve Slow Opening / Fast Closing DN50

Control position indicator

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

360 mbar

pmax

opening time

closing time

360 mbar

Adjustable - 0,5 to 40 sec

<1 second

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

230Vac

11/4"-11/2"-PeakPower40W- Maintain power4W

2"-Peakpower130W- Maintain power 1,5W

Coils to class F copper wire class H

5 connections

Screw 1⁄4”

EN161 / PED

complete body

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
