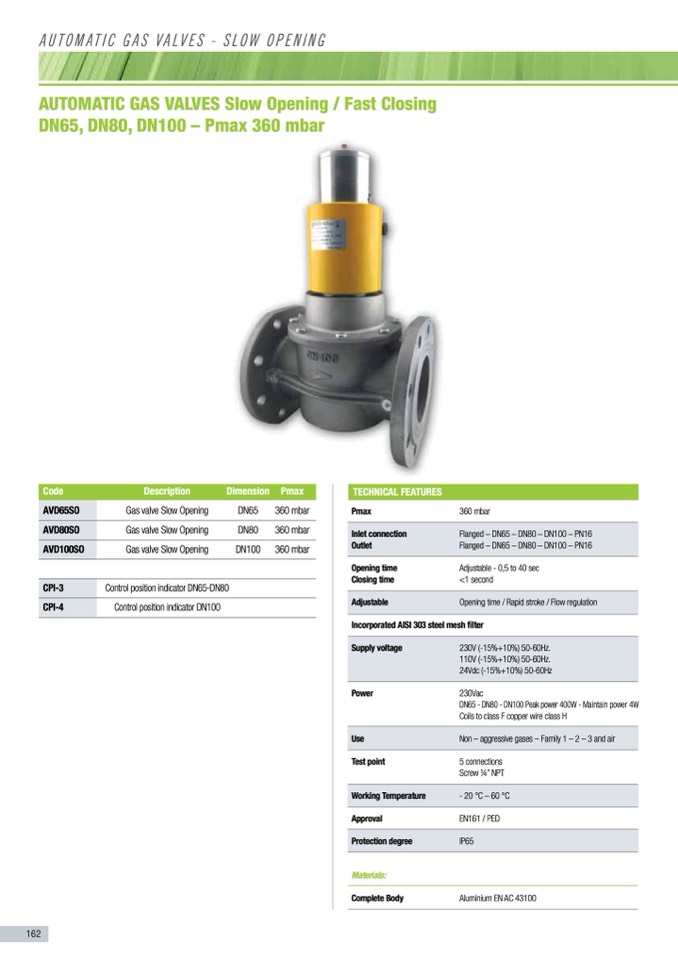

aUToMaTIC Gas vaLves - sLow openInG

AuTOmATIC GAS VAlVES Slow Opening / Fast Closing

DN65, DN80, DN100 – Pmax 360 mbar

Gas valve Slow Opening

Gas valve Slow Opening

Gas valve Slow Opening

Control position indicator DN65-DN80

Control position indicator DN100

DN65

360 mbar

DN80

360 mbar

DN100 360 mbar

pmax

opening time

closing time

360 mbar

Adjustable - 0,5 to 40 sec

<1 second

Incorporated aIsI 303 steel mesh filter

power

Test point

approval

Materials:

230Vac

DN65 - DN80 - DN100 Peak power 400W - Maintain power 4W

Coils to class F copper wire class H

5 connections

Screw 1⁄4” NPT

EN161 / PED

complete body

Aluminium EN AC 43100
