TEcHnIcal fEaTurEs

max number of operations

use

working Temperature

protection degree

20 per minute

Non – aggressive gases – Family 1 – 2 – 3 and air

- 20 °C – 60 °C

IP65

aV015no-6b

aV020no-6b

aV025no-6b

aVD25no-6b

174

code

Description

Dimension pmax

aV015no

aV020no

aV025no

aVD25no

Inlet connection

Thread gas 1⁄2” 3⁄4” and 1” - ISO 228

- outlet

DN25 - Sliding Aluminium flange PN10

supply voltage

230V (-15%+10%) 50-60Hz

110V (-15%+10%) 50-60Hz

24Vdc (-15%+10%) 50-60Hz

aUToMaTIC Gas vaLves

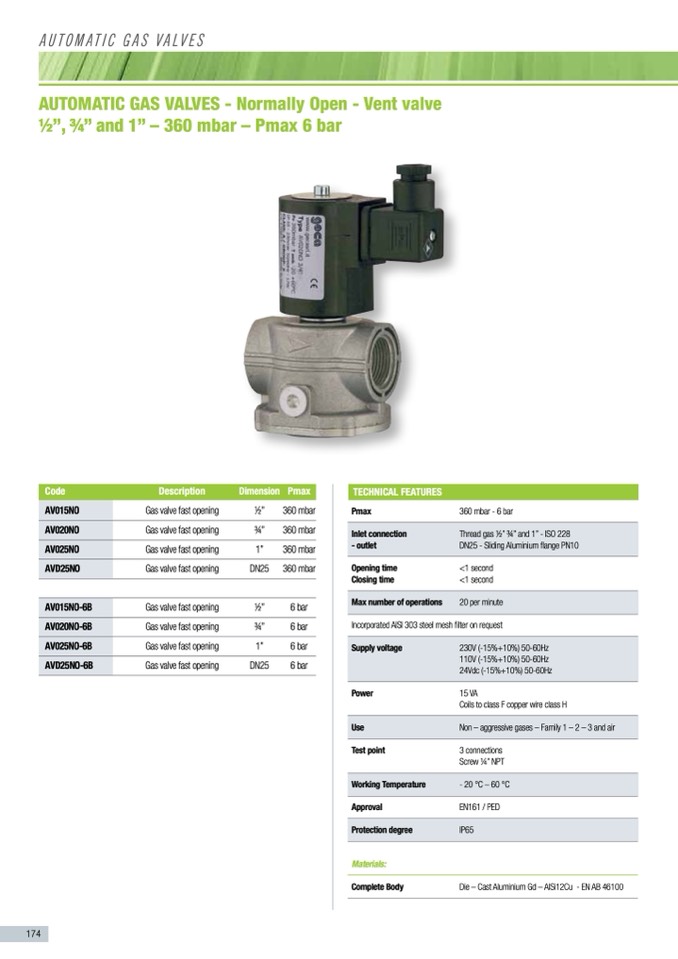

AuTOmATIC GAS VAlVES - Normally Open - Vent valve

1⁄2”, 3⁄4” and 1” – 360 mbar – Pmax 6 bar

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

Gas valve fast opening

1⁄2”

360 mbar

3⁄4”

360 mbar

1”

360 mbar

DN25 360 mbar

1⁄2”

6bar

3⁄4”

6bar

1”

6bar

DN25

6 bar

pmax

opening time

closing time

360 mbar - 6 bar

<1 second

<1 second

Incorporated AISI 303 steel mesh filter on request

power

Test point

approval

Materials:

15VA

Coils to class F copper wire class H

3 connections

Screw 1⁄4” NPT

EN161 / PED

complete body

Die–CastAluminiumGd–AlSi12Cu -ENAB46100
