TEcHnIcal fEaTurEs

use

body

Internal componentes

Non – Aggressive gases – Family 1-2-3 and air

Brass ST-CW617N – EN 12420 – Yellow Painted

Brass

192

code

Description

Dimension pmax

sV032-6b-opso

sV040-6b-opso

sV050-6b-opso

code

Description

Dimension pmax

sVD32-6b-opso

sVD40-6b-opso

Inlet connection

Threaded gas 1 1⁄4” , 1 1⁄2” , 2” – ISO228

sVD50-6b-opso

approval

PED

protection degree

IP65

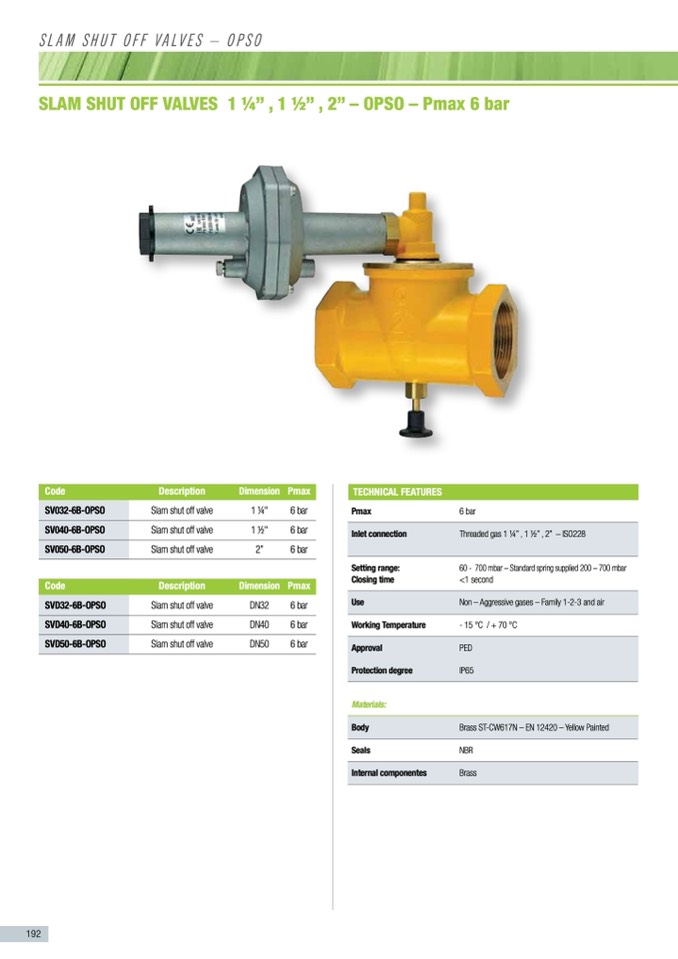

sLaM shUT oFF vaLves – opso

SlAm SHuT OFF VAlVES

1 1⁄4” , 1 1⁄2” , 2” – OPSO – Pmax 6 bar

Slam shut off valve

11⁄4"

Slam shut off valve

11⁄2"

Slam shut off valve

2”

Slam shut off valve

DN32

Slam shut off valve

DN40

Slam shut off valve

DN50

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

pmax

setting range:

closing time

working Temperature

Materials:

seals

6 bar

60- 700mbar–Standardspringsupplied200–700mbar

<1 second

-15°C /+70°C

NBR
