Gas reGULaTors

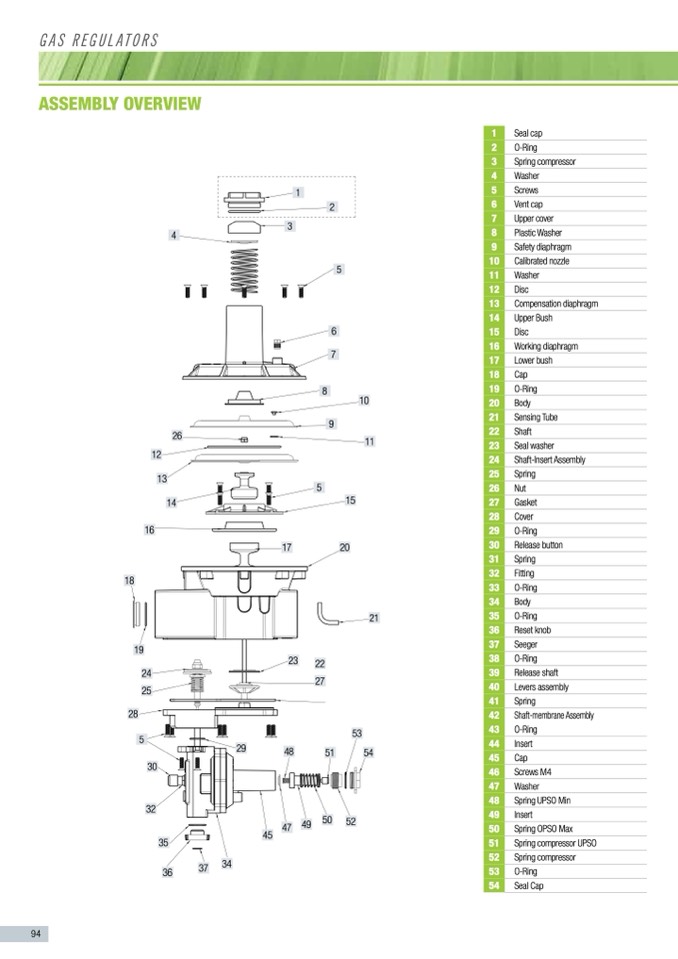

ASSEmbly OVERVIEw

4

1

2

3

5

1

Seal cap

2

O-Ring

3

Spring compressor

4

Washer

5

Screws

6

Vent cap

7

Upper cover

8

Plastic Washer

9

Safety diaphragm

10 Calibrated nozzle

11 Washer

12 Disc

13 Compensation diaphragm

14 Upper Bush

15 Disc

16 Working diaphragm

17 Lower bush

18 Cap

19 O-Ring

20 Body

21 Sensing Tube

22 Shaft

23 Seal washer

24 Shaft-Insert Assembly

25 Spring

26 Nut

27 Gasket

28 Cover

29 O-Ring

30 Release button

31 Spring

32 Fitting

33 O-Ring

34 Body

35 O-Ring

36 Reset knob

37 Seeger

38 O-Ring

39 Release shaft

40 Levers assembly

41 Spring

42 Shaft-membrane Assembly

43 O-Ring

44 Insert

45 Cap

46 Screws M4

47 Washer

48 Spring UPSO Min

49 Insert

50 Spring OPSO Max

51 Spring compressor UPSO

52 Spring compressor

53 O-Ring

54 Seal Cap

5

30

29

53

48

51

54

26

12

6

7

8

10

9

11

15

20

13

14

16

19

24

25

28

32

35

36

5

18

17

23

37

34

45

47

49

50 52

22

27

21
