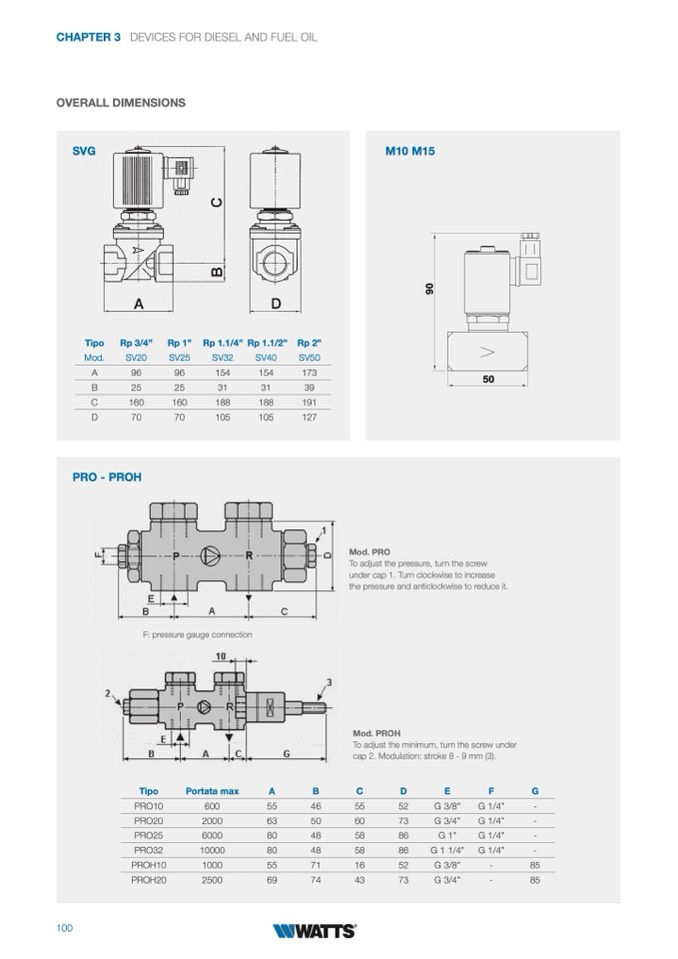

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL
OVERALL DIMENSIONS
SVG
Tipo
Rp 3/4”
Rp 1” Rp 1.1/4” Rp 1.1/2” Rp 2”
Mod.
SV20
SV25
SV32
SV40
SV50
A
96
96
154
154
173
B
25
25
31
31
39
C
160
160
188
188
191
D
70
70
105
105
127
M10 M15
50
PRO - PROH
F: pressure gauge connection
Mod. PRO
To adjust the pressure, turn the screw
under cap 1. Turn clockwise to increase
the pressure and anticlockwise to reduce it.
Mod. PROH
To adjust the minimum, turn the screw under
cap 2. Modulation: stroke 8 - 9 mm (3).
Tipo
PRO10
PRO20
PRO25
PRO32
PROH10
PROH20
Portata max
A
600
55
2000
63
6000
80
10000
80
1000
55
2500
69
B
C
D
46
55
52
50
60
73
48
58
86
48
58
86
71
16
52
74
43
73
E
F
G
G 3/8”
G 3/4”
G 1”
G 1 1/4”
G 3/8”
G 3/4”
G 1/4”
-
G 1/4”
-
G 1/4”
-
G 1/4”
-
-
85
-
85
100
9
0
