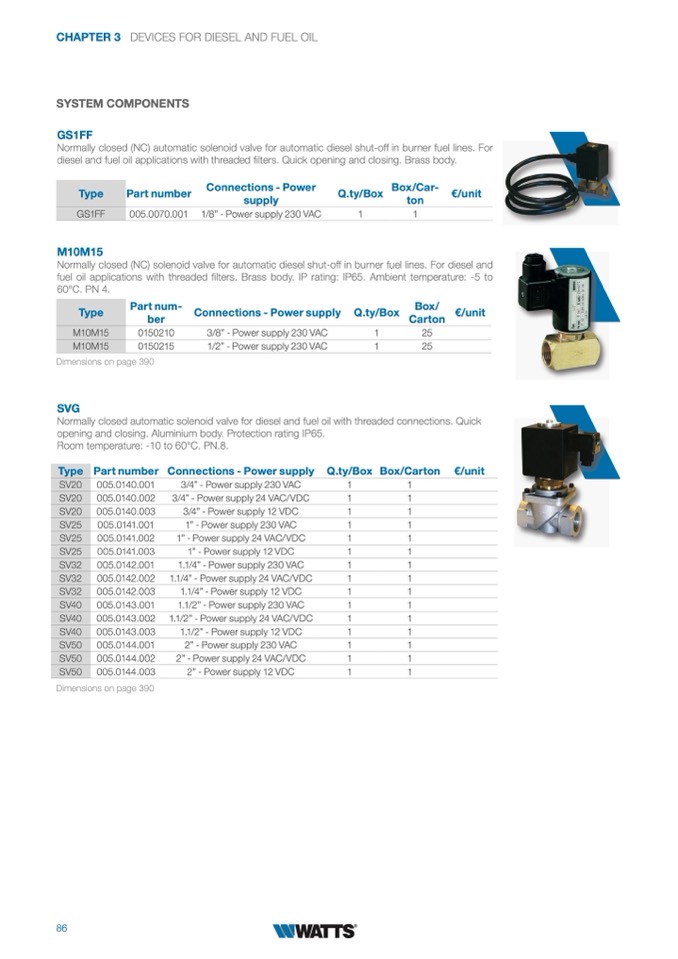

CHAPTER 3 DEVICES FOR DIESEL AND FUEL OIL

SYSTEM COMPONENTS

GS1FF

Normally closed (NC) automatic solenoid valve for automatic diesel shut-off in burner fuel lines. For

diesel and fuel oil applications with threaded filters. Quick opening and closing. Brass body.

Type

GS1FF

Part number

Connections - Power

supply

005.0070.001 1/8” - Power supply 230 VAC

Q.ty/Box

Box/Car-

€/unit

ton

1

1

M10M15

Normally closed (NC) solenoid valve for automatic diesel shut-off in burner fuel lines. For diesel and

fuel oil applications with threaded filters. Brass body. IP rating: IP65. Ambient temperature: -5 to

60°C. PN 4.

Type

M10M15

M10M15

Part num-

ber

0150210

0150215

Dimensions on page 390

SVG

Connections - Power supply

3/8” - Power supply 230 VAC

1/2” - Power supply 230 VAC

Q.ty/Box

Box/

Carton

1

25

1

25

€/unit

Normally closed automatic solenoid valve for diesel and fuel oil with threaded connections. Quick

opening and closing. Aluminium body. Protection rating IP65.

Room temperature: -10 to 60°C. PN.8.

Type

SV20

SV20

SV20

SV25

SV25

SV25

SV32

SV32

SV32

SV40

SV40

SV40

SV50

SV50

SV50

Part number

005.0140.001

005.0140.002

005.0140.003

005.0141.001

005.0141.002

005.0141.003

005.0142.001

005.0142.002

005.0142.003

005.0143.001

005.0143.002

005.0143.003

005.0144.001

005.0144.002

005.0144.003

Dimensions on page 390

Connections - Power supply

3/4” - Power supply 230 VAC

3/4” - Power supply 24 VAC/VDC

3/4” - Power supply 12 VDC

1” - Power supply 230 VAC

1” - Power supply 24 VAC/VDC

1” - Power supply 12 VDC

1.1/4” - Power supply 230 VAC

1.1/4” - Power supply 24 VAC/VDC

1.1/4” - Power supply 12 VDC

1.1/2” - Power supply 230 VAC

1.1/2” - Power supply 24 VAC/VDC

1.1/2” - Power supply 12 VDC

2” - Power supply 230 VAC

2” - Power supply 24 VAC/VDC

2” - Power supply 12 VDC

Q.ty/Box Box/Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

86
