46

47

PELLET

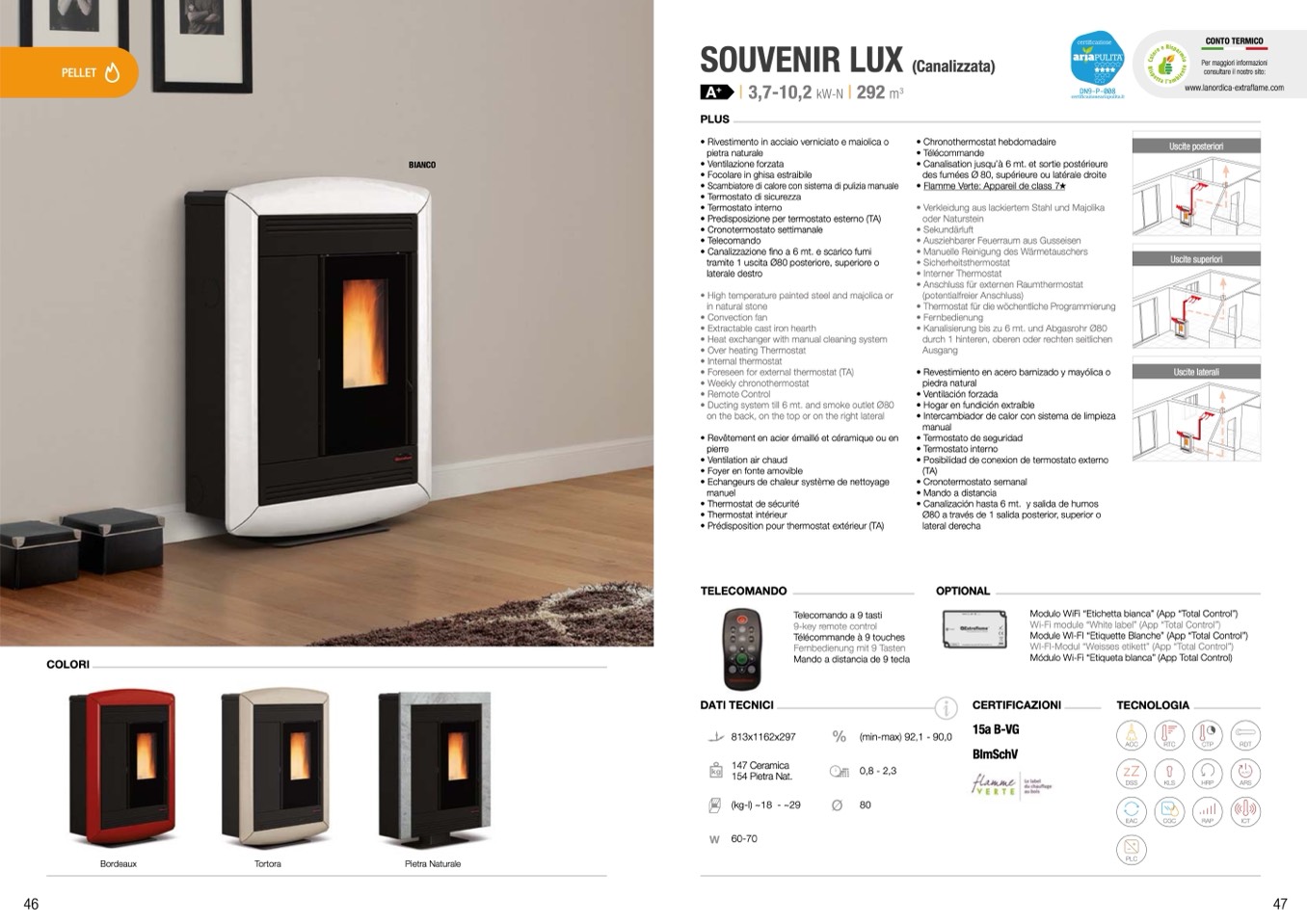

SOUVENIR LUX

(Canalizzata)

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

Uscite posteriori

Uscite superiori

Uscite laterali

COLORI

Telecomando a 9 tasti

9-key remote control

Télécommande à 9 touches

Fernbedienung mit 9 Tasten

Mando a distancia de 9 tecla

Modulo WiFi “Etichetta bianca” (App “Total Control”)

Wi-Fi module “White label” (App “Total Control”)

Module WI-FI “Etiquette Blanche” (App “Total Control”)

WI-FI-Modul “Weisses etikett” (App “Total Control”)

Módulo Wi-Fi “Etiqueta blanca” (App Total Control)

Bordeaux

Tortora

Pietra Naturale

BIANCO

A

+

| 3,7-10,2 kW-N | 292 m

3

PLUS

• Rivestimento in acciaio verniciato e maiolica o

pietra naturale

• Ventilazione forzata

• Focolare in ghisa estraibile

• Scambiatore di calore con sistema di pulizia manuale

• Termostato di sicurezza

• Termostato interno

• Predisposizione per termostato esterno (TA)

• Cronotermostato settimanale

• Telecomando

• Canalizzazione fino a 6 mt. e scarico fumi

tramite 1 uscita Ø80 posteriore, superiore o

laterale destro

• High temperature painted steel and majolica or

in natural stone

• Convection fan

• Extractable cast iron hearth

• Heat exchanger with manual cleaning system

• Over heating Thermostat

• Internal thermostat

• Foreseen for external thermostat (TA)

• Weekly chronothermostat

• Remote Control

• Ducting system till 6 mt. and smoke outlet Ø80

on the back, on the top or on the right lateral

• Revêtement en acier émaillé et céramique ou en

pierre

• Ventilation air chaud

• Foyer en fonte amovible

• Echangeurs de chaleur système de nettoyage

manuel

• Thermostat de sécurité

• Thermostat intérieur

• Prédisposition pour thermostat extérieur (TA)

DN9-P-008

• Chronothermostat hebdomadaire

• Télécommande

• Canalisation jusqu’à 6 mt. et sortie postérieure

des fumées Ø 80, supérieure ou latérale droite

• Flamme Verte: Appareil de class 7

• Verkleidung aus lackiertem Stahl und Majolika

oder Naturstein

• Sekundärluft

• Ausziehbarer Feuerraum aus Gusseisen

• Manuelle Reinigung des Wärmetauschers

• Sicherheitsthermostat

• Interner Thermostat

• Anschluss für externen Raumthermostat

(potentialfreier Anschluss)

• Thermostat für die wöchentliche Programmierung

• Fernbedienung

• Kanalisierung bis zu 6 mt. und Abgasrohr Ø80

durch 1 hinteren, oberen oder rechten seitlichen

Ausgang

• Revestimiento en acero barnizado y mayólica o

piedra natural

• Ventilación forzada

• Hogar en fundición extraíble

• Intercambiador de calor con sistema de limpieza

manual

• Termostato de seguridad

• Termostato interno

• Posibilidad de conexion de termostato externo

(TA)

• Cronotermostato semanal

• Mando a distancia

• Canalización hasta 6 mt. y salida de humos

Ø80 a través de 1 salida posterior, superior o

lateral derecha

TELECOMANDO

DATI TECNICI

813x1162x297

147 Ceramica

154 Pietra Nat.

(kg-l) ~18 - ~29

60-70

OPTIONAL

(min-max) 92,1 - 90,0

0,8 - 2,3

80

CERTIFICAZIONI

15a B-VG

BlmSchV

TECNOLOGIA

CONTO TERMICO
