CONTO TERMICO

INSERTI

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

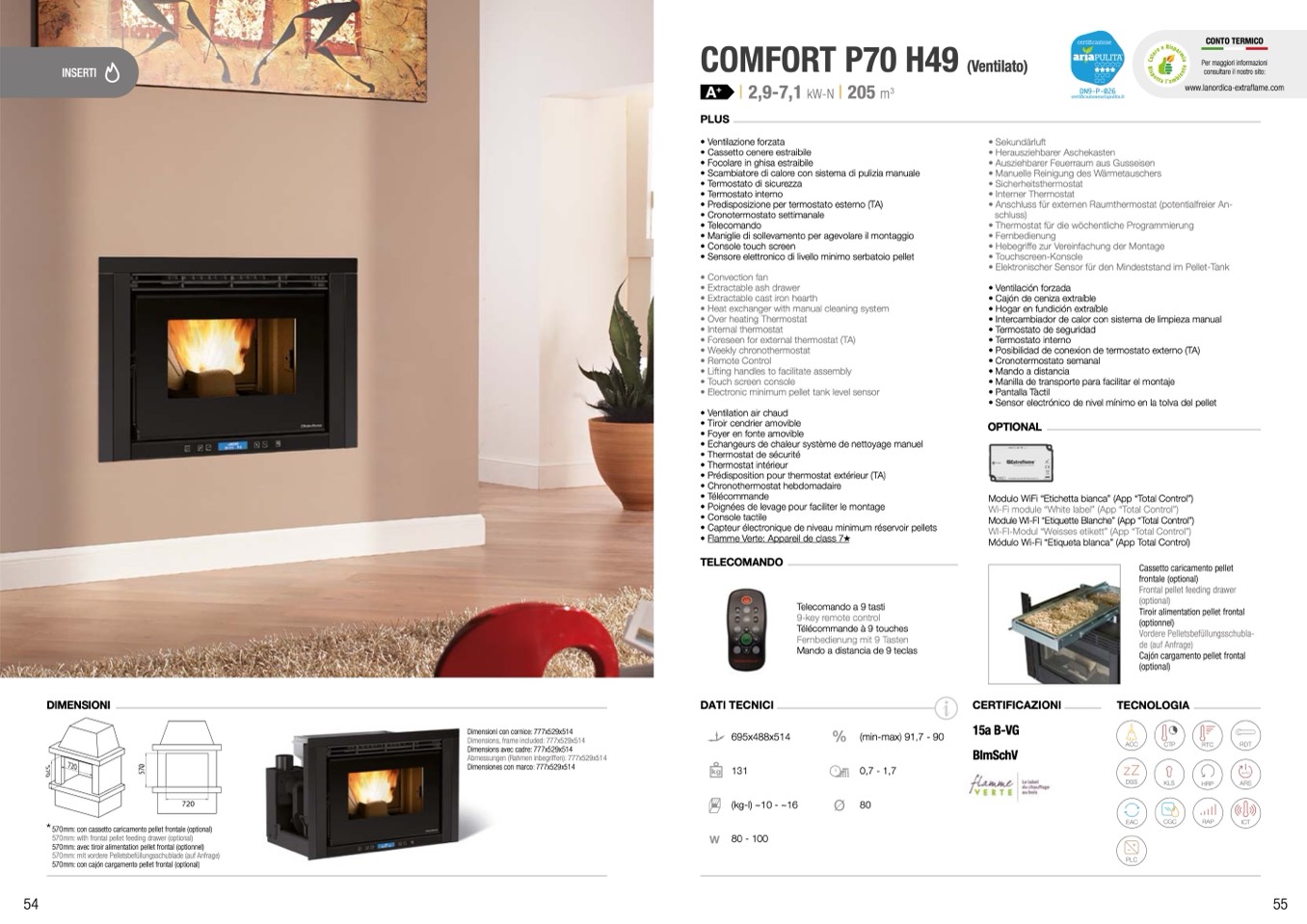

COMFORT P70 H49

(Ventilato)

A

+

| 2,9-7,1 kW-N | 205 m

3

PLUS

• Ventilazione forzata

• Cassetto cenere estraibile

• Focolare in ghisa estraibile

• Scambiatore di calore con sistema di pulizia manuale

• Termostato di sicurezza

• Termostato interno

• Predisposizione per termostato esterno (TA)

• Cronotermostato settimanale

• Telecomando

• Maniglie di sollevamento per agevolare il montaggio

• Console touch screen

• Sensore elettronico di livello minimo serbatoio pellet

• Convection fan

• Extractable ash drawer

• Extractable cast iron hearth

• Heat exchanger with manual cleaning system

• Over heating Thermostat

• Internal thermostat

• Foreseen for external thermostat (TA)

• Weekly chronothermostat

• Remote Control

• Lifting handles to facilitate assembly

• Touch screen console

• Electronic minimum pellet tank level sensor

• Ventilation air chaud

• Tiroir cendrier amovible

• Foyer en fonte amovible

• Echangeurs de chaleur système de nettoyage manuel

• Thermostat de sécurité

• Thermostat intérieur

• Prédisposition pour thermostat extérieur (TA)

• Chronothermostat hebdomadaire

• Télécommande

• Poignées de levage pour faciliter le montage

• Console tactile

• Capteur électronique de niveau minimum réservoir pellets

• Flamme Verte: Appareil de class 7

DN9-P-026

• Sekundärluft

• Herausziehbarer Aschekasten

• Ausziehbarer Feuerraum aus Gusseisen

• Manuelle Reinigung des Wärmetauschers

• Sicherheitsthermostat

• Interner Thermostat

• Anschluss für externen Raumthermostat (potentialfreier An-

schluss)

• Thermostat für die wöchentliche Programmierung

• Fernbedienung

• Hebegriffe zur Vereinfachung der Montage

• Touchscreen-Konsole

• Elektronischer Sensor für den Mindeststand im Pellet-Tank

• Ventilación forzada

• Cajón de ceniza extraíble

• Hogar en fundición extraíble

• Intercambiador de calor con sistema de limpieza manual

• Termostato de seguridad

• Termostato interno

• Posibilidad de conexion de termostato externo (TA)

• Cronotermostato semanal

• Mando a distancia

• Manilla de transporte para facilitar el montaje

• Pantalla Tàctil

• Sensor electrónico de nivel mínimo en la tolva del pellet

OPTIONAL

Modulo WiFi “Etichetta bianca” (App “Total Control”)

Wi-Fi module “White label” (App “Total Control”)

Module WI-FI “Etiquette Blanche” (App “Total Control”)

WI-FI-Modul “Weisses etikett” (App “Total Control”)

Módulo Wi-Fi “Etiqueta blanca” (App Total Control)

TELECOMANDO

DATI TECNICI

695x488x514

131

(kg-l) ~10 - ~16

80 - 100

Cassetto caricamento pellet

frontale (optional)

Frontal pellet feeding drawer

(optional)

Tiroir alimentation pellet frontal

(optionnel)

Vordere Pelletsbefüllungsschubla-

de (auf Anfrage)

Cajón cargamento pellet frontal

(optional)

TECNOLOGIA

Telecomando a 9 tasti

9-key remote control

Télécommande à 9 touches

Fernbedienung mit 9 Tasten

Mando a distancia de 9 teclas

DIMENSIONI

570mm: con cassetto caricamento pellet frontale (optional)

570mm: with frontal pellet feeding drawer (optional)

570mm: avec tiroir alimentation pellet frontal (optionnel)

570mm: mit vordere Pelletsbefüllungsschublade (auf Anfrage)

570mm: con cajón cargamento pellet frontal (optional)

Dimensioni con cornice: 777x529x514

Dimensions, frame included: 777x529x514

Dimensions avec cadre: 777x529x514

Abmessungen (Rahmen inbegriffen): 777x529x514

Dimensiones con marco: 777x529x514

(min-max) 91,7 - 90

0,7 - 1,7

80

CERTIFICAZIONI

15a B-VG

BlmSchV

54

55
