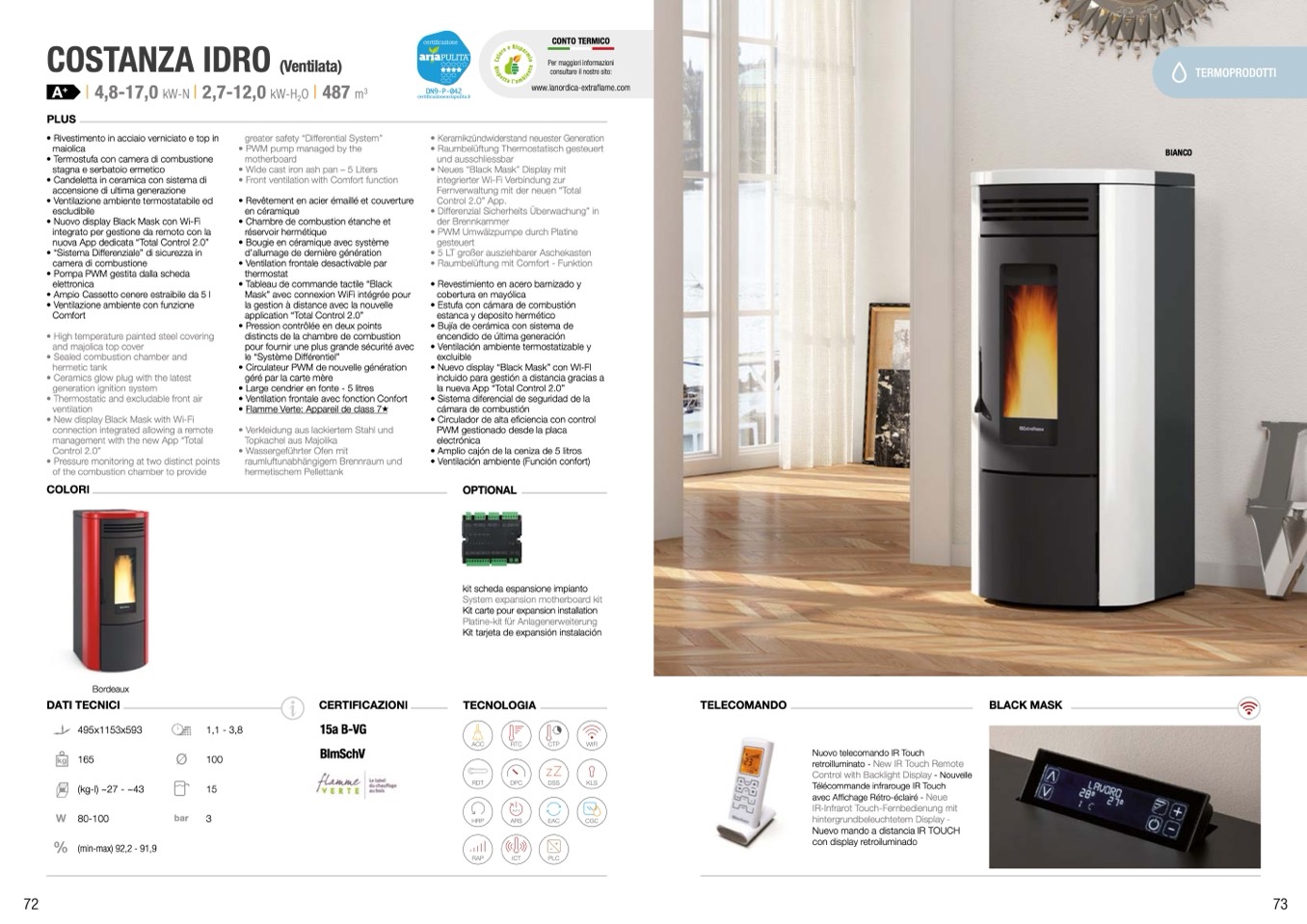

COSTANZA IDRO

(Ventilata)

A

+

| 4,8-17,0 kW-N | 2,7-12,0 kW-H

2

O

| 487 m

3

PLUS

DN9-P-042

• Keramikzündwiderstand neuester Generation

• Raumbelüftung Thermostatisch gesteuert

und ausschliessbar

• Neues “Black Mask” Display mit

integrierter Wi-Fi Verbindung zur

Fernverwaltung mit der neuen “Total

Control 2.0” App.

• Differenzial Sicherheits Überwachung” in

der Brennkammer

• PWM Umwälzpumpe durch Platine

gesteuert

• 5 LT großer ausziehbarer Aschekasten

• Raumbelüftung mit Comfort - Funktion

• Revestimiento en acero barnizado y

cobertura en mayólica

• Estufa con cámara de combustión

estanca y deposito hermético

• Bujía de cerámica con sistema de

encendido de última generación

• Ventilación ambiente termostatizable y

excluible

• Nuevo display “Black Mask” con WI-FI

incluido para gestión a distancia gracias a

la nueva App “Total Control 2.0”

• Sistema diferencial de seguridad de la

cámara de combustión

• Circulador de alta eficiencia con control

PWM gestionado desde la placa

electrónica

• Amplio cajón de la ceniza de 5 litros

• Ventilación ambiente (Función confort)

OPTIONAL

kit scheda espansione impianto

System expansion motherboard kit

Kit carte pour expansion installation

Platine-kit für Anlagenerweiterung

Kit tarjeta de expansión instalación

TECNOLOGIA

• Rivestimento in acciaio verniciato e top in

maiolica

• Termostufa con camera di combustione

stagna e serbatoio ermetico

• Candeletta in ceramica con sistema di

accensione di ultima generazione

• Ventilazione ambiente termostatabile ed

escludibile

• Nuovo display Black Mask con Wi-Fi

integrato per gestione da remoto con la

nuova App dedicata “Total Control 2.0”

• “Sistema Differenziale” di sicurezza in

camera di combustione

• Pompa PWM gestita dalla scheda

elettronica

• Ampio Cassetto cenere estraibile da 5 l

• Ventilazione ambiente con funzione

Comfort

• High temperature painted steel covering

and majolica top cover

• Sealed combustion chamber and

hermetic tank

• Ceramics glow plug with the latest

generation ignition system

• Thermostatic and excludable front air

ventilation

• New display Black Mask with Wi-Fi

connection integrated allowing a remote

management with the new App “Total

Control 2.0”

• Pressure monitoring at two distinct points

of the combustion chamber to provide

greater safety “Differential System”

• PWM pump managed by the

motherboard

• Wide cast iron ash pan – 5 Liters

• Front ventilation with Comfort function

• Revêtement en acier émaillé et couverture

en céramique

• Chambre de combustion étanche et

réservoir hermétique

• Bougie en céramique avec système

d’allumage de dernière génération

• Ventilation frontale desactivable par

thermostat

• Tableau de commande tactile “Black

Mask” avec connexion WiFi intégrée pour

la gestion à distance avec la nouvelle

application “Total Control 2.0”

• Pression contrôlée en deux points

distincts de la chambre de combustion

pour fournir une plus grande sécurité avec

le “Système Différentiel”

• Circulateur PWM de nouvelle génération

géré par la carte mère

• Large cendrier en fonte - 5 litres

• Ventilation frontale avec fonction Confort

• Flamme Verte: Appareil de class 7

• Verkleidung aus lackiertem Stahl und

Topkachel aus Majolika

• Wassergeführter Ofen mit

raumluftunabhängigem Brennraum und

hermetischem Pellettank

BIANCO

COLORI

Bordeaux

DATI TECNICI

495x1153x593

165

(kg-l) ~27 - ~43

80-100

(min-max) 92,2 - 91,9

CERTIFICAZIONI

15a B-VG

BlmSchV

TELECOMANDO

BLACK MASK

1,1 - 3,8

100

15

���

3

Nuovo telecomando IR Touch

retroilluminato - New IR Touch Remote

Control with Backlight Display - Nouvelle

Télécommande infrarouge IR Touch

avec Affichage Rétro-éclairé - Neue

IR-Infrarot Touch-Fernbedienung mit

hintergrundbeleuchtetem Display -

Nuevo mando a distancia IR TOUCH

con display retroiluminado

72

73

CONTO TERMICO

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

TERMOPRODOTTI
