IMIT CONTROL SYSTEM
IMIT CONTROL SYSTEM

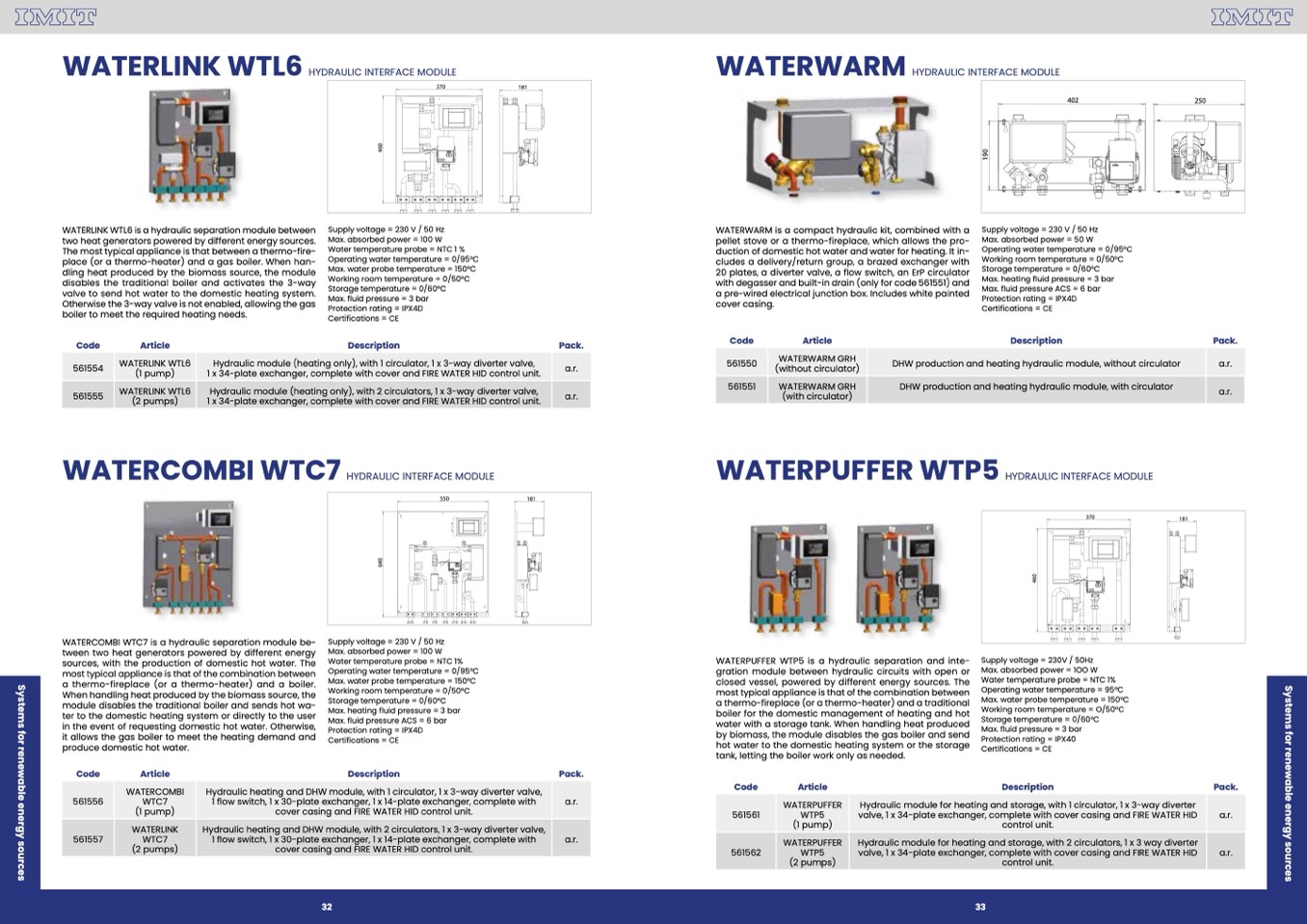

WATERLINK WTL6
WATERLINK WTL6 is a hydraulic separation module between
two heat generators powered by different energy sources.
The most typical appliance is that between a thermo-fire-
place (or a thermo-heater) and a gas boiler. When han-
dling heat produced by the biomass source, the module
disables the traditional boiler and activates the 3-way
valve to send hot water to the domestic heating system.
Otherwise the 3-way valve is not enabled, allowing the gas
boiler to meet the required heating needs.
Code
Article
WATERWARM
IMIT CONTROL SYSTEM
IMIT CONTROL SYSTEM
HYDRAULICINTERFACEMODULE
HYDRAULICINTERFACEMODULE
370
181
4
6
0
402
250
1
9
0
Supply voltage = 230 V / 50 Hz
Max. absorbed power = 100 W
Water temperature probe = NTC 1 %
Operating water temperature = 0/95°C
Max. water probe temperature = 150°C
Working room temperature = 0/50°C
Storage temperature = 0/60°C
Max. fluid pressure = 3 bar
Protection rating = IPX4D
Certifications = CE
Description
WATERWARM is a compact hydraulic kit, combined with a
pellet stove or a thermo-fireplace, which allows the pro-
duction of domestic hot water and water for heating. It in-
cludes a delivery/return group, a brazed exchanger with
20 plates, a diverter valve, a flow switch, an ErP circulator
with degasser and built-in drain (only for code 561551) and
a pre-wired electrical junction box. Includes white painted
cover casing.
Supply voltage = 230 V / 50 Hz
Max. absorbed power = 50 W
Operating water temperature = 0/95°C
Working room temperature = 0/50°C
Storage temperature = 0/60°C
Max. heating fluid pressure = 3 bar
Max. fluid pressure ACS = 6 bar
Protection rating = IPX4D
Certifications = CE
Description
Pack.
Code
Article
Pack.
561550
WATERWARM GRH
(without circulator)
DHW production and heating hydraulic module, without circulator
a.r.
561551
WATERWARM GRH
(with circulator)
DHW production and heating hydraulic module, with circulator
a.r.
561554
WATERLINK WTL6
(1 pump)
Hydraulic module (heating only), with 1 circulator, 1 x 3-way diverter valve,
1 x 34-plate exchanger, complete with cover and FIRE WATER HID control unit.
a.r.
561555
WATERLINK WTL6
(2 pumps)
Hydraulic module (heating only), with 2 circulators, 1 x 3-way diverter valve,
1 x 34-plate exchanger, complete with cover and FIRE WATER HID control unit.
a.r.
WATERCOMBI WTC7
HYDRAULIC INTERFACE MODULE
WATERPUFFER WTP5
HYDRAULIC INTERFACE MODULE
550
181
6
4
0
370
181
4
6
0
WATERCOMBI WTC7 is a hydraulic separation module be-
tween two heat generators powered by different energy
sources, with the production of domestic hot water. The
most typical appliance is that of the combination between
a thermo-fireplace (or a thermo-heater) and a boiler.
When handling heat produced by the biomass source, the
module disables the traditional boiler and sends hot wa-
ter to the domestic heating system or directly to the user
in the event of requesting domestic hot water. Otherwise,
it allows the gas boiler to meet the heating demand and
produce domestic hot water.
Code
Article
Supply voltage = 230 V / 50 Hz
Max. absorbed power = 100 W
Water temperature probe = NTC 1%
Operating water temperature = 0/95°C
Max. water probe temperature = 150°C
Working room temperature = 0/50°C
Storage temperature = 0/60°C
Max. heating fluid pressure = 3 bar
Max. fluid pressure ACS = 6 bar
Protection rating = IPX4D
Certifications = CE
Description
Pack.
WATERPUFFER WTP5 is a hydraulic separation and inte-
gration module between hydraulic circuits with open or
closed vessel, powered by different energy sources. The
most typical appliance is that of the combination between
a thermo-fireplace (or a thermo-heater) and a traditional
boiler for the domestic management of heating and hot
water with a storage tank. When handling heat produced
by biomass, the module disables the gas boiler and send
hot water to the domestic heating system or the storage
tank, letting the boiler work only as needed.
Code
Article
Supply voltage = 230V / 50Hz
Max. absorbed power = 1OO W
Water temperature probe = NTC 1%
Operating water temperature = 95°C
Max. water probe temperature = 150°C
Working room temperature = O/50°C
Storage temperature = 0/60°C
Max. fluid pressure = 3 bar
Protection rating = IPX40
Certifications = CE
Description
Pack.
S
y
s
t
e
m
s
f
o
r
r
e
n
e
w
a
b
l
e
e
n
e
r
g
y
s
o
u
r
c
e
s
S
y
s
t
e
m
s
f
o
r
r
e
n
e
w
a
b
l
e
e
n
e
r
g
y
s
o
u
r
c
e
s
561556
WATERCOMBI
WTC7
(1 pump)
Hydraulic heating and DHW module, with 1 circulator, 1 x 3-way diverter valve,
1 flow switch, 1 x 30-plate exchanger, 1 x 14-plate exchanger, complete with
cover casing and FIRE WATER HID control unit.
a.r.
561557
WATERLINK
WTC7
(2 pumps)
Hydraulic heating and DHW module, with 2 circulators, 1 x 3-way diverter valve,
1 flow switch, 1 x 30-plate exchanger, 1 x 14-plate exchanger, complete with
cover casing and FIRE WATER HID control unit.
a.r.
561561
WATERPUFFER
WTP5
(1 pump)
Hydraulic module for heating and storage, with 1 circulator, 1 x 3-way diverter
valve, 1 x 34-plate exchanger, complete with cover casing and FIRE WATER HID
control unit.
a.r.
561562
WATERPUFFER
WTP5
(2 pumps)
Hydraulic module for heating and storage, with 2 circulators, 1 x 3 way diverter
valve, 1 x 34-plate exchanger, complete with cover casing and FIRE WATER HID
control unit.
a.r.
