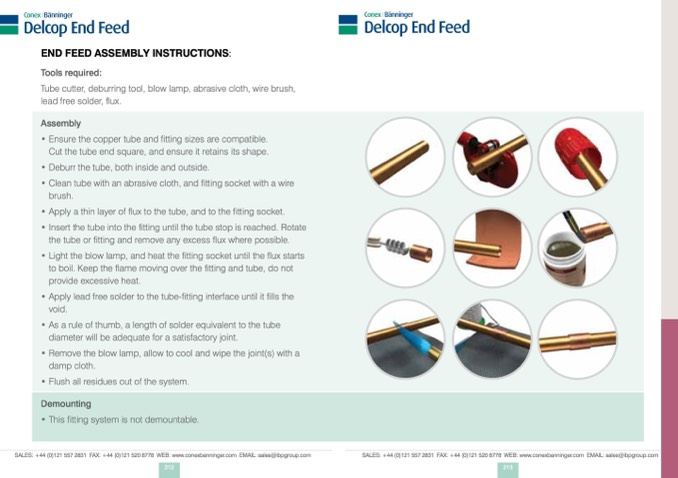

END FEED ASSEMBLY INSTRUCTIONS:

Tools required:

Tube cutter, deburring tool, blow lamp, abrasive cloth, wire brush,

lead free solder, flux.

Assembly

• Ensure the copper tube and fitting sizes are compatible.

Cut the tube end square, and ensure it retains its shape.

• Deburr the tube, both inside and outside.

• Clean tube with an abrasive cloth, and fitting socket with a wire

brush.

• Apply a thin layer of flux to the tube, and to the fitting socket.

• Insert the tube into the fitting until the tube stop is reached. Rotate

the tube or fitting and remove any excess flux where possible.

• Light the blow lamp, and heat the fitting socket until the flux starts

to boil. Keep the flame moving over the fitting and tube, do not

provide excessive heat.

• Apply lead free solder to the tube-fitting interface until it fills the

void.

• As a rule of thumb, a length of solder equivalent to the tube

diameter will be adequate for a satisfactory joint.

• Remove the blow lamp, allow to cool and wipe the joint(s) with a

damp cloth.

• Flush all residues out of the system.

Demounting

• This fitting system is not demountable.
