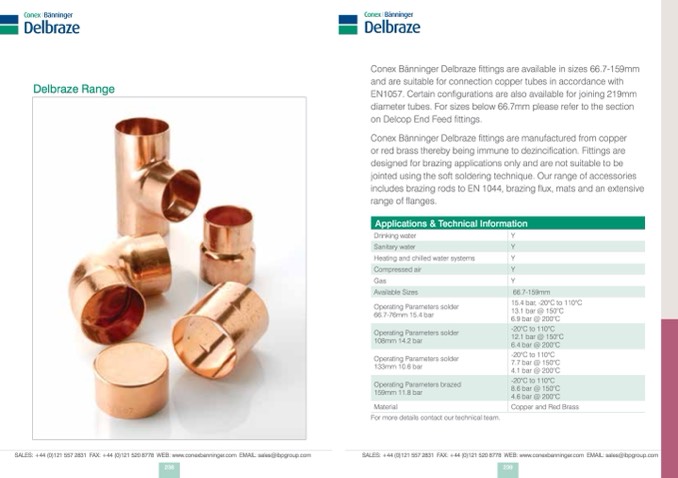

Delbraze Range

Conex Bänninger Delbraze fittings are available in sizes 66.7-159mm

and are suitable for connection copper tubes in accordance with

EN1057. Certain configurations are also available for joining 219mm

diameter tubes. For sizes below 66.7mm please refer to the section

on Delcop End Feed fittings.

Conex Bänninger Delbraze fittings are manufactured from copper

or red brass thereby being immune to dezincification. Fittings are

designed for brazing applications only and are not suitable to be

jointed using the soft soldering technique. Our range of accessories

includes brazing rods to EN 1044, brazing flux, mats and an extensive

range of flanges.

Applications & Technical Information

Drinking water

Y

Sanitary water

Y

Heating and chilled water systems

Y

Compressed air

Y

Gas

Y

Available Sizes

66.7-159mm

Operating Parameters solder

66.7-76mm 15.4 bar

15.4 bar, -20°C to 110°C

13.1 bar @ 150°C

6.9 bar @ 200°C

Operating Parameters solder

108mm 14.2 bar

-20°C to 110°C

12.1 bar @ 150°C

6.4 bar @ 200°C

Operating Parameters solder

133mm 10.6 bar

-20°C to 110°C

7.7 bar @ 150°C

4.1 bar @ 200°C

Operating Parameters brazed

159mm 11.8 bar

-20°C to 110°C

8.6 bar @ 150°C

4.6 bar @ 200°C

Material

Copper and Red Brass

For more details contact our technical team.
