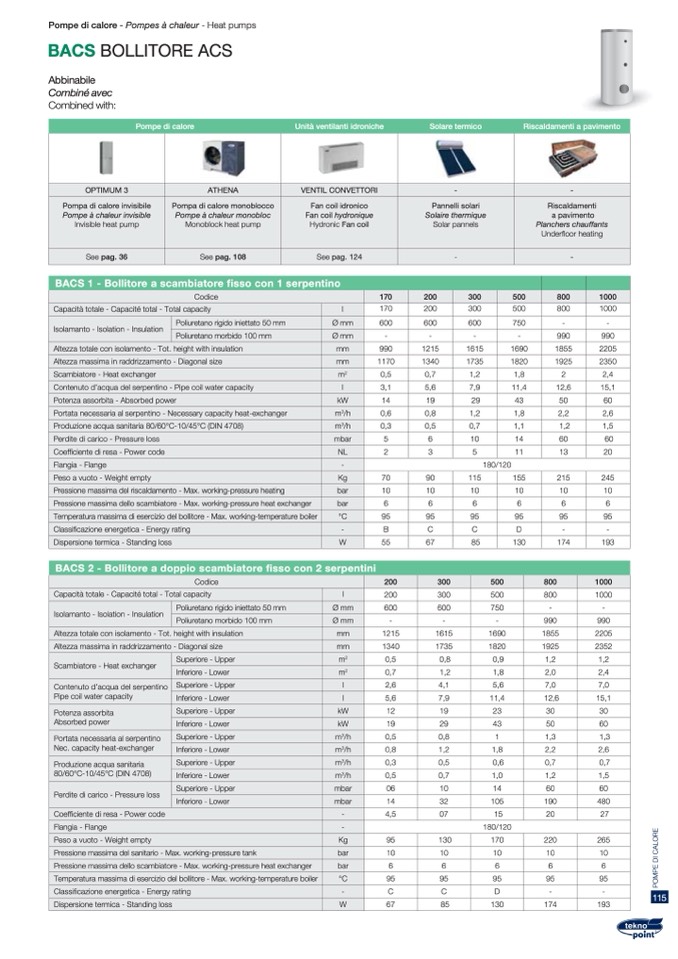

Pompe di calore - Pompes à chaleur - Heat pumps

BACS BOLLITORE ACS

Abbinabile

Combiné avec

Combined with:

Pompe di calore

Unità ventilanti idroniche

Solare termico

Riscaldamenti a pavimento

OPTIMUM 3 ATHENA

VENTIL CONVETTORI - -

Pompa di calore invisibile

Pompe à chaleur invisible

Invisible heat pump

Pompa di calore monoblocco

Pompe à chaleur monobloc

Monoblock heat pump

Fan coil idronico

Fan coil hydronique

Hydronic Fan coil

Pannelli solari

Solaire thermique

Solar pannels

Riscaldamenti

a pavimento

Planchers chauffants

Underfloor heating

See pag. 36 See pag. 108

See pag. 124 - -

BACS 1 - Bollitore a scambiatore fisso con 1 serpentino

Codice

170 200 300

500 800 1000

Capacità totale - Capacité total - Total capacity

l

170 200 300

500 800 1000

Isolamanto - Isolation - Insulation

Poliuretano rigido iniettato 50 mm

Ø mm

600 600 600

750 - -

Poliuretano morbido 100 mm

Ø mm

- - -

- 990 990

Altezza totale con isolamento - Tot. height with insulation

mm

990 1215 1615

1690 1855 2205

Altezza massima in raddrizzamento - Diagonal size

mm

1170 1340 1735

1820 1925 2350

Scambiatore - Heat exchanger

m

2

0,5 0,7 1,2

1,8 2 2,4

Contenuto d’acqua del serpentino - Pipe coil water capacity

l

3,1 5,6 7,9

11,4 12,6 15,1

Potenza assorbita - Absorbed power

kW

14 19 29

43 50 60

Portata necessaria al serpentino - Necessary capacity heat-exchanger

m

3

/h

0,6 0,8 1,2

1,8 2,2 2,6

Produzione acqua sanitaria 80/60°C-10/45°C (DIN 4708)

m

3

/h

0,3 0,5 0,7

1,1 1,2 1,5

Perdite di carico - Pressure loss

mbar

5 6 10

14 60 60

Coefficiente di resa - Power code

NL

2 3 5

11 13 20

Flangia - Flange

- 180/120

Peso a vuoto - Weight empty

Kg

70 90 115

155 215 245

Pressione massima del riscaldamento - Max. working-pressure heating

bar

10 10 10

10 10 10

Pressione massima dello scambiatore - Max. working-pressure heat exchanger

bar

6 6 6

6 6 6

Temperatura massima di esercizio del bollitore - Max. working-temperature boiler

°C

95 95 95

95 95 95

Classificazione energetica - Energy rating

-

B C C

D - -

Dispersione termica - Standing loss

W

55 67 85

130 174 193

BACS 2 - Bollitore a doppio scambiatore fisso con 2 serpentini

Codice

200 300

500

800 1000

Capacità totale - Capacité total - Total capacity

l

200 300

500

800 1000

Isolamanto - Isolation - Insulation

Poliuretano rigido iniettato 50 mm

Ø mm

600 600

750

- -

Poliuretano morbido 100 mm

Ø mm

- -

-

990 990

Altezza totale con isolamento - Tot. height with insulation

mm

1215 1615

1690

1855 2205

Altezza massima in raddrizzamento - Diagonal size

mm

1340 1735

1820

1925 2352

Scambiatore - Heat exchanger

Superiore - Upper

m

2

0,5 0,8

0,9

1,2 1,2

Inferiore - Lower

m

2

0,7 1,2

1,8

2,0 2,4

Contenuto d’acqua del serpentino

Pipe coil water capacity

Superiore - Upper

l

2,6 4,1

5,6

7,0 7,0

Inferiore - Lower

l

5,6 7,9

11,4

12,6 15,1

Potenza assorbita

Absorbed power

Superiore - Upper

kW

12 19

23

30 30

Inferiore - Lower

kW

19 29

43

50 60

Portata necessaria al serpentino

Nec. capacity heat-exchanger

Superiore - Upper

m

3

/h

0,5 0,8

1

1,3 1,3

Inferiore - Lower

m

3

/h

0,8 1,2

1,8

2,2 2,6

Produzione acqua sanitaria

80/60°C-10/45°C (DIN 4708)

Superiore - Upper

m

3

/h

0,3 0,5

0,6

0,7 0,7

Inferiore - Lower

m

3

/h

0,5 0,7

1,0

1,2 1,5

Perdite di carico - Pressure loss

Superiore - Upper

mbar

06 10

14

60 60

Inferiore - Lower

mbar

14 32

105

190 480

Coefficiente di resa - Power code

-

4,5 07

15

20 27

Flangia - Flange

-

180/120

Peso a vuoto - Weight empty

Kg

95 130

170

220 265

Pressione massima del sanitario - Max. working-pressure tank

bar

10 10

10

10 10

Pressione massima dello scambiatore - Max. working-pressure heat exchanger

bar

6 6

6

6 6

Temperatura massima di esercizio del bollitore - Max. working-temperature boiler

°C

95 95

95

95 95

Classificazione energetica - Energy rating

-

C C

D

- -

Dispersione termica - Standing loss

W

67 85

130

174 193
