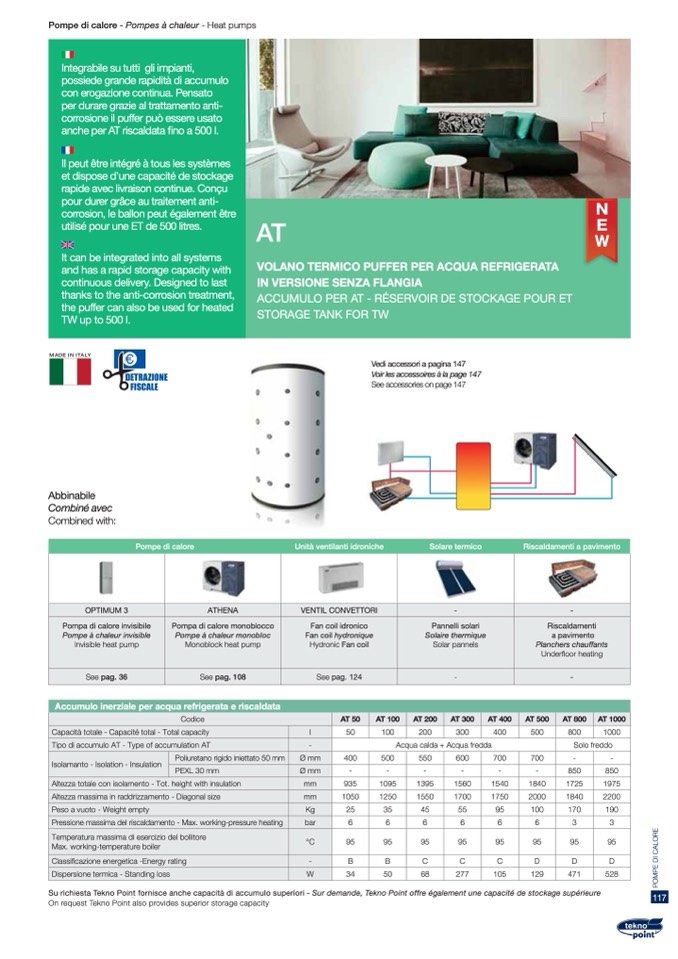

Pompe di calore - Pompes à chaleur - Heat pumps

Integrabile su tutti gli impianti,

possiede grande rapidità di accumulo

con erogazione continua. Pensato

per durare grazie al trattamento anti-

corrosione il puffer può essere usato

anche per AT riscaldata fino a 500 l.

Il peut être intégré à tous les systèmes

et dispose d’une capacité de stockage

rapide avec livraison continue. Conçu

pour durer grâce au traitement anti-

corrosion, le ballon peut également être

utilisé pour une ET de 500 litres.

It can be integrated into all systems

and has a rapid storage capacity with

continuous delivery. Designed to last

thanks to the anti-corrosion treatment,

the puffer can also be used for heated

TWupto500l.

AT

VOLANO TERMICO PUFFER PER ACQUA REFRIGERATA

IN VERSIONE SENZA FLANGIA

ACCUMULO PER AT - RÉSERVOIR DE STOCKAGE POUR ET

STORAGE TANK FOR TW

N

E

W

Vedi accessori a pagina 147

Voir les accessoires à la page 147

See accessories on page 147

Abbinabile

Combiné avec

Combined with:

Pompe di calore

Unità ventilanti idroniche

Solare termico

Riscaldamenti a pavimento

OPTIMUM 3 ATHENA VENTIL CONVETTORI

- -

Pompa di calore invisibile

Pompe à chaleur invisible

Invisible heat pump

Pompa di calore monoblocco

Pompe à chaleur monobloc

Monoblock heat pump

Fan coil idronico

Fan coil hydronique

Hydronic Fan coil

Pannelli solari

Solaire thermique

Solar pannels

Riscaldamenti

a pavimento

Planchers chauffants

Underfloor heating

See pag. 36 See pag. 108 See pag. 124

- -

Accumulo inerziale per acqua refrigerata e riscaldata

Codice AT 50

AT 100 AT 200 AT 300

AT 400 AT 500

AT 800 AT 1000

Capacità totale - Capacité total - Total capacity

l 50

100 200 300

400 500

800 1000

Tipo di accumulo AT - Type of accumulation AT -

Acqua calda + Acqua fredda Solo freddo

Isolamanto - Isolation - Insulation

Poliuretano rigido iniettato 50 mm

Ø mm 400

500 550 600

700 700

- -

PEXL 30 mm

Ø mm -

- - -

- -

850 850

Altezza totale con isolamento - Tot. height with insulation

mm

935

1095

1395 1560

1540

1840

1725

1975

Altezza massima in raddrizzamento - Diagonal size

mm 1050

1250 1550 1700

1750 2000

1840 2200

Peso a vuoto - Weight empty

Kg

25

35

45 55

95

100

170

190

Pressione massima del riscaldamento - Max. working-pressure heating

bar 6

6 6 6

6 6

3 3

Temperatura massima di esercizio del bollitore

Max. working-temperature boiler

°C 95

95 95 95

95 95

95 95

Classificazione energetica -Energy rating

- B

B C C

C D

D D

Dispersione termica - Standing loss

W

34

50

68 277

105

129

471

528

Su richiesta Tekno Point fornisce anche capacità di accumulo superiori - Sur demande, Tekno Point offre également une capacité de stockage supérieure

On request Tekno Point also provides superior storage capacity
