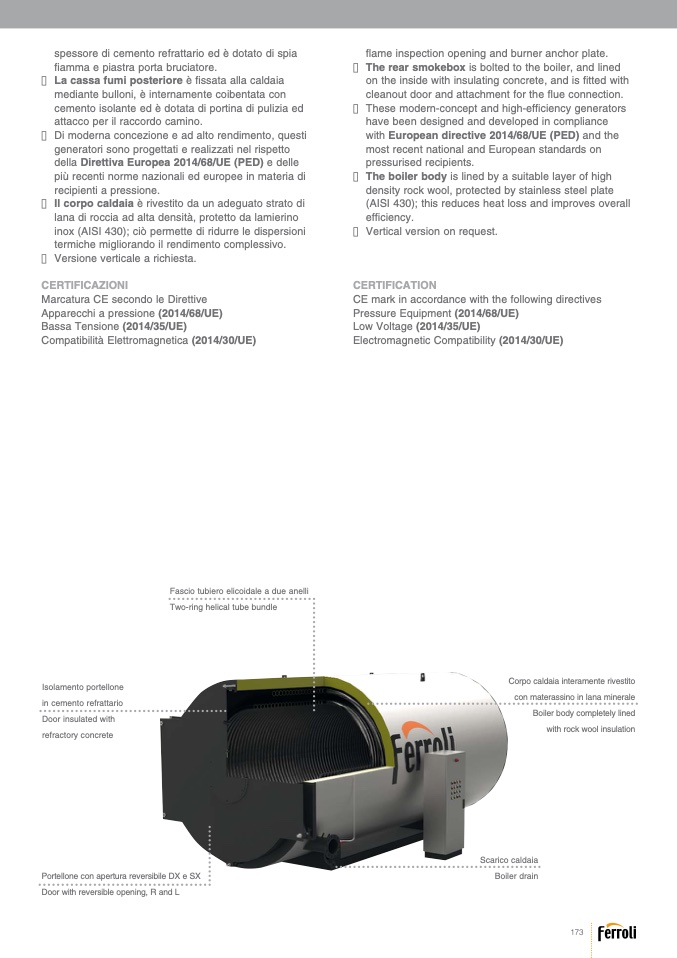

spessore di cemento refrattario ed è dotato di spia

fiamma e piastra porta bruciatore.

n La cassa fumi posteriore è

fissata alla caldaia

mediante bulloni, è internamente coibentata con

cemento isolante ed è dotata di portina di pulizia ed

attacco per il raccordo camino.

n Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

più recenti norme nazionali ed europee in materia di

recipienti a pressione.

n Il corpo caldaia è rivestito da un adeguato strato di

lana di roccia ad alta densità, protetto da lamierino

inox (AISI 430); ciò permette di ridurre le dispersioni

termiche migliorando il rendimento complessivo.

n Versione verticale a richiesta.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

flame inspection opening and burner anchor plate.

n The rear smokebox is bolted to the boiler, and lined

on the inside with insulating concrete, and is fitted with

cleanout door and attachment for the flue connection.

n These modern-concept and high-efficiency generators

have been designed and developed in compliance

with European directive 2014/68/UE (PED) and the

most recent national and European standards on

pressurised recipients.

n The boiler body is lined by a suitable layer of high

density rock wool, protected by stainless steel plate

(AISI 430); this reduces heat loss and improves overall

efficiency.

n Vertical version on request.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

Fascio tubiero elicoidale a due anelli

Two-ring helical tube bundle

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Corpo caldaia interamente rivestito

con materassino in lana minerale

Boiler body completely lined

with rock wool insulation

Scarico caldaia

Boiler drain

Portellone con apertura reversibile DX e SX

Door with reversible opening, R and L
