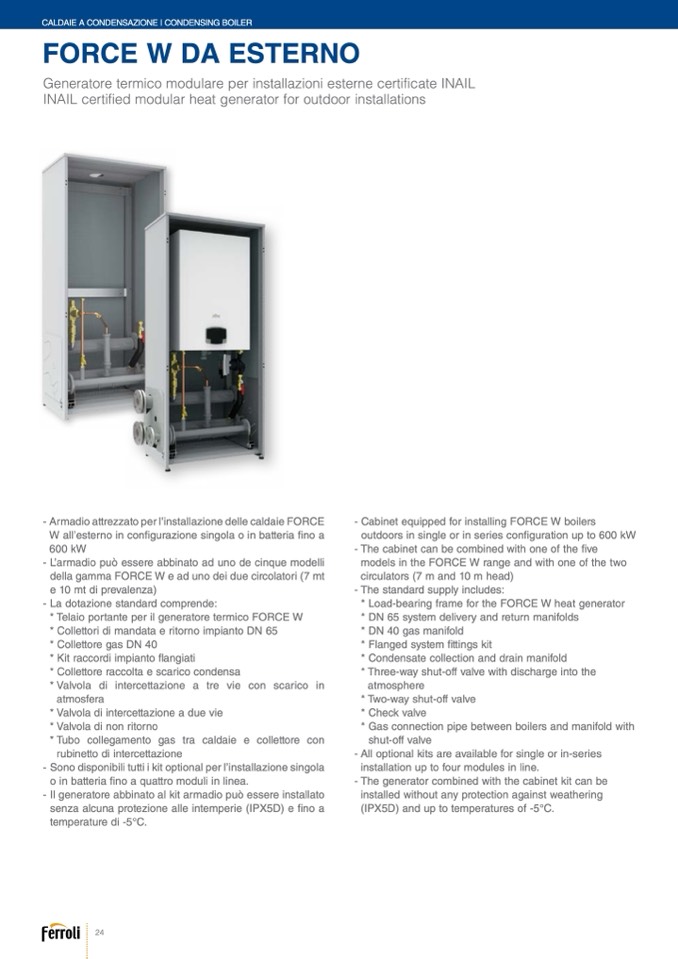

CALDAIE A CONDENSAZIONE | CONDENSING BOILER

FORCE W DA ESTERNO

Generatore termico modulare per installazioni esterne certificate INAIL

INAIL certified modular heat generator for outdoor installations

- Armadio attrezzato per l’installazione delle caldaie FORCE

W all’esterno in configurazione singola o in batteria fino a

600 kW

- L’armadio può essere abbinato ad uno de cinque modelli

della gamma FORCE W e ad uno dei due circolatori (7 mt

e 10 mt di prevalenza)

- La dotazione standard comprende:

* Telaio portante per il generatore termico FORCE W

* Collettori di mandata e ritorno impianto DN 65

* Collettore gas DN 40

* Kit raccordi impianto flangiati

* Collettore raccolta e scarico condensa

*Valvola di intercettazione a tre vie con scarico in

atmosfera

* Valvola di intercettazione a due vie

* Valvola di non ritorno

* Tubo collegamento gas tra caldaie e collettore con

rubinetto di intercettazione

- Sono disponibili tutti i kit optional per l’installazione singola

o in batteria fino a quattro moduli in linea.

- Il generatore abbinato al kit armadio può essere installato

senza alcuna protezione alle intemperie (IPX5D) e fino a

temperature di -5°C.

- Cabinet equipped for installing FORCE W boilers

outdoors in single or in series configuration up to 600 kW

- The cabinet can be combined with one of the five

models in the FORCE W range and with one of the two

circulators (7 m and 10 m head)

- The standard supply includes:

* Load-bearing frame for the FORCE W heat generator

* DN 65 system delivery and return manifolds

* DN 40 gas manifold

* Flanged system fittings kit

* Condensate collection and drain manifold

* Three-way shut-off valve with discharge into the

atmosphere

* Two-way shut-off valve

* Check valve

* Gas connection pipe between boilers and manifold with

shut-off valve

- All optional kits are available for single or in-series

installation up to four modules in line.

- The generator combined with the cabinet kit can be

installed without any protection against weathering

(IPX5D) and up to temperatures of -5°C.
