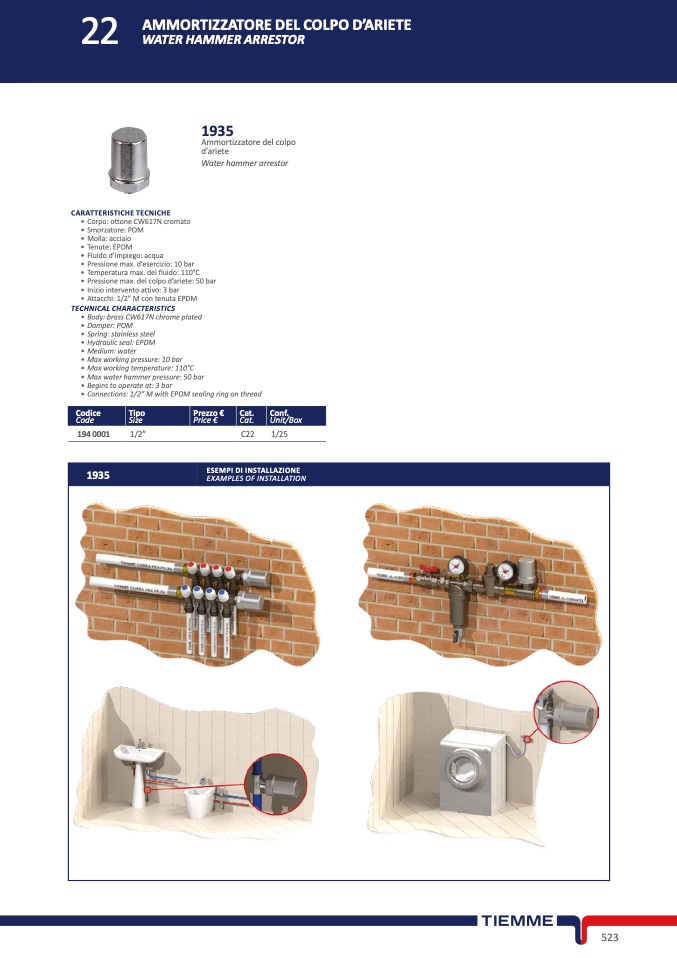

22 AMMORTIZZATORE DEL COLPO D’ARIETE

WATER HAMMER ARRESTOR

193

5

Ammortizzatore del colp

o

d’ariet

e

Water hammer arresto

r

CARATTERISTICHE TECNICH

E

• Corpo: ottone CW617N cromato

• Smorzatore: POM

• Molla: acciaio

• Tenute: EPDM

• Fluido d’impiego: acqua

• Pressione max. d’esercizio: 10 bar

• Temperatura max. del fluido: 110°C

• Pressione max. del colpo d’ariete: 50 bar

• Inizio intervento attivo: 3 bar

• Attacchi: 1/2” M con tenuta EPDM

TECHNICAL CHARACTERISTIC

S

• Body: brass CW617N chrome plated

• Damper: POM

• Spring: stainless steel

• Hydraulic seal: EPDM

• Medium: water

• Max working pressure: 10 bar

• Max working temperature: 110°C

• Max water hammer pressure: 50 bar

• Begins to operate at: 3 bar

• Connections: 1/2” M with EPDM sealing ring on thread

Codice

Cod

e

Tipo

Size

Prezzo €

Price €

Cat.

Cat

.

Conf.

Unit/Bo

x

194 0001

1/2”

C22

1/2

5

1935

ESEMPI DI INSTALLAZIONE

EXAMPLES OF INSTALLATION

523
