RACCORDI AD INNESTO RAPIDO “COBRASUN” PER TUBO ACCIAIO INOX CORRUGAT

O

“COBRASUN” QUICK JOINT FITTINGS FOR STAINLESS STEEL CORRUGATED PIP

E

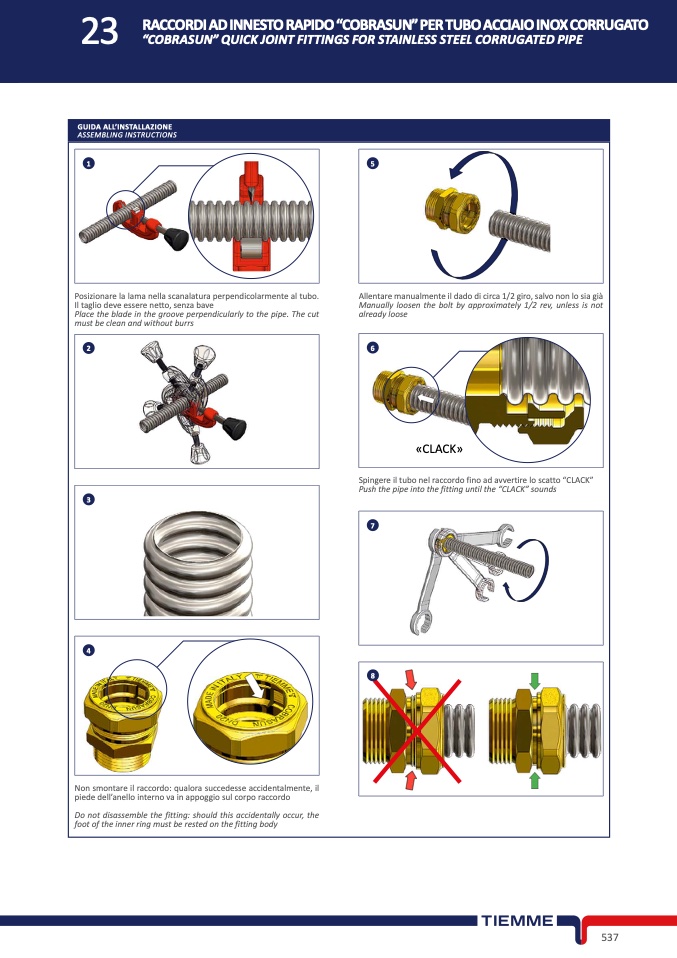

GUIDA ALL’INSTALLAZIONE

ASSEMBLING INSTRUCTION

S

1

5

Posizionare la lama nella scanalatura perpendicolarmente al tubo

.

Il taglio deve essere netto, senza bav

e

Place the blade in the groove perpendicularly to the pipe. The cut

must be clean and without burr

s

Allentare manualmente il dado di circa 1/2 giro, salvo non lo sia già

Manually loosen the bolt by approximately 1/2 rev, unless is no

t

already loose

2

6

«

CLACK »

«

CLACK »

«

CLACK »

« CLACK »

Spingere il tubo nel raccordo fino ad avvertire lo scatto “CLACK”

Push the pipe into the fitting until the “CLACK” sounds

3

7

4

8

Non smontare il raccordo: qualora succedesse accidentalmente, il

piede dell’anello interno va in appoggio sul corpo raccord

o

Do not disassemble the fitting: should this accidentally occur, th

e

foot of the inner ring must be rested on the fitting bod

y
