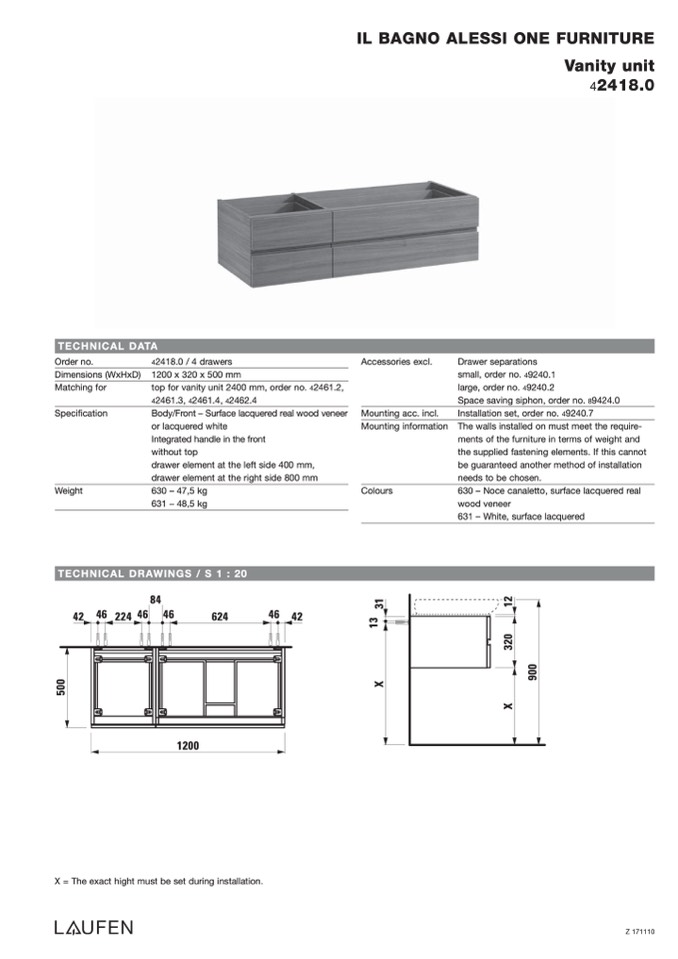

TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
Weight
4
2418.0 / 4 drawers
1200 x 320 x 500 mm
top for vanity unit 2400 mm, order no. 42461.2,
4
2461.3, 42461.4, 42462.4
Body/Front – Surface lacquered real wood veneer
or lacquered white
Integrated handle in the front
without top
drawer element at the left side 400 mm,
drawer element at the right side 800 mm
630 – 47,5 kg
631 – 48,5 kg
Accessories excl.
Mounting acc. incl.
Mounting information
Colours
Drawer separations
small, order no. 49240.1
large, order no. 49240.2
Space saving siphon, order no. 89424.0
Installation set, order no. 49240.7
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen.
630 – Noce canaletto, surface lacquered real
wood veneer
631 – White, surface lacquered
42418.0
TECHNICAL DRAWINGS / S 1 : 20
84
42 46 224 46
46
624
46 42
1200
X = The exact hight must be set during installation.
Z 171110
5
0
0
X
1
3
3
1
X
3
2
0
1
2
9
0
0
